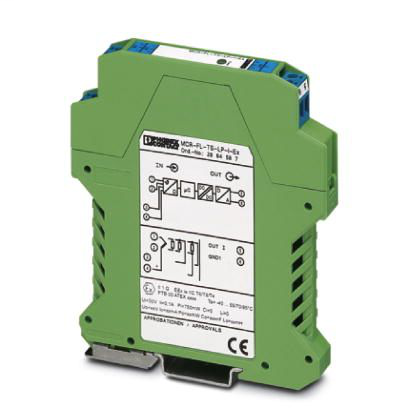

Phoenix Contact 2864587
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MCR temperature measuring transducers, resistance thermometers, thermocouples, resistance and voltage sensorsTemperature measuring transducer 2864587
Phoenix Contact 2864587 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 55 °C
Connection data
- Conductor cross section AWG max.
- 14
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque max
- 0.6 Nm
- Tightening torque, min
- 0.5 Nm
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 12.5 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Input data
- Configurable/programmable
- Yes, programmable
- Connection technology
- 2, 3, 4-wire
- Input signal range
- 10 Ω - 400 Ω (min. measurement range 10 Ω)
- -10 mV - 100 mV (min. measurement range 5 mV)
- 10 Ω - 2000 Ω (min. measurement range 100 Ω)
- Sensor types (RTD) that can be used
- Pt, Ni (100, 500, 1000); min. measurement range 10 K
- Sensor types that can be used (TC)
- B, C, D, E, J, K, L, N, R, S, T, U; min. measurement range 50 K/500 K
Output data
- Configurable/programmable
- no
- Yes
- Current output signal
- 20 mA - 4 mA
- 4 mA - 20 mA
- Load/output load current output
- ≤ 520 Ω (At UV = 24 V; Usupply - 12 V / 0.023 A)
- Max. current output signal
- ≤ 23 mA
- Output current range with overrange/underrange
- 3.8 mA - 20.5 mA
- Output current with short-circuit
- ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples)
- Output current with wire break
- ≤ 3.6 mA or ≥ 21 mA (adjustable)
- Signal output
- Current output
Power supply
- Designation
- Loop-powered
- Max. current consumption
- < 3.5 mA
- Supply voltage range
- 12 V DC - 30 V DC
Safety data
- Group
- IIB
- IIA
- IIC
- Max. ambient temperature
- T4 = 85 °C, T5 = 70 °C, T6 = 55 °C
- Max. external capacity Co
- 10 µF
- 2 µF
- 10 µF
- Max. external inductivity Lo
- 100 mH
- 100 mH
- 100 mH
- Max. output current Io
- 5.9 mA
- Max. output power Po
- 7.2 mW
- Max. output voltage Uo
- 5 V DC
- Safety-related maximum voltage Um
- 250 V
Standards and Regulations
- ATEX
- II 2(1) G Ex ia IIC T6
- Conformance
- CE-compliant
- Flammability rating according to UL 94
- V0
- Group
- IIB
- IIA
- IIC
- Standards/regulations
- NAMUR recommendation NE 21
- UL, USA/Canada
- cULus
