Description

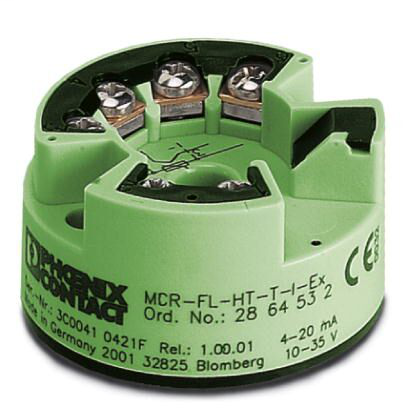

MCR head-mounted temperature transducers, programmable, intrinsically safe, for resistance thermometers, thermocouples, resistance-type sensors and voltage sensors. For Pt 100 resistance thermometersHead-mounted transducer - MCR-FL-HT-T-I-EX - 2864532
Phoenix Contact 2864532 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 55 °C
- Degree of protection
- IP00
- IP66 (Installed in the connection head)
Connection data
- Conductor cross section AWG
- 24 - 15
- Conductor cross section flexible
- 0.2 mm² - 1.75 mm²
- Conductor cross section solid
- 0.2 mm² - 1.75 mm²
- Connection method
- Screw connection
- pluggable
- no
- Screw thread
- M3
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Input data
- Configurable/programmable
- Yes, programmable
- Connection technology
- 2, 3, 4-wire
- Input signal range
- 10 Ω - 2000 Ω (min. measurement range 100 Ω)
- -10 mV - 100 mV (min. measurement range 5 mV)
- 10 Ω - 400 Ω (min. measurement range 10 Ω)
- Sensor types (RTD) that can be used
- Pt, Ni (100, 500, 1000); min. measurement range 10 K
- Sensor types that can be used (TC)
- B, C, D, E, J, K, L, N, R, S, T, U; min. measurement range 50 K/500 K
Output data
- Configurable/programmable
- no
- Yes, programmable
- Current output signal
- 4 mA - 20 mA
- 20 mA - 4 mA
- Load/output load current output
- ≤ 720 Ω (For UV = 24 V; Usupply - 8 V / 0.025 A)
- Max. current output signal
- ≤ 25 mA
- Output current range with overrange/underrange
- 3.8 mA - 20.5 mA (linear increase/decrease)
- Output current with short-circuit
- ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples)
- Output current with wire break
- ≤ 3.6 mA or ≥ 21 mA (adjustable)
Power supply
- Designation
- Loop-powered
- Max. current consumption
- < 3.5 mA
- Supply voltage range
- 8 V DC - 30 V DC
Safety data
- Group
- IIB
- IIC
- Max. ambient temperature
- Category 1: T4 = 60°C, T5 = 50°C, T6 = 40°C
- Max. external capacitance Co
- 974 nF
- 1.9 µF
- Max. external inductivity Lo
- 8.5 mH
- 4.5 mH
- Max. output current Io
- 4.6 mA
- Max. output power Po
- 9.35 mW
- Max. output voltage Uo
- 8.2 V DC
- Safety-related maximum voltage Um
- 250 V
Standards and Regulations
- ATEX
- II 1 G Ex ia IIC T6/T5/T4
- Conformance
- CE-compliant
- Group
- IIB
- IIC
- Standards/regulations
- NAMUR recommendation NE 21
- UL, USA/Canada
- cULus
