Description

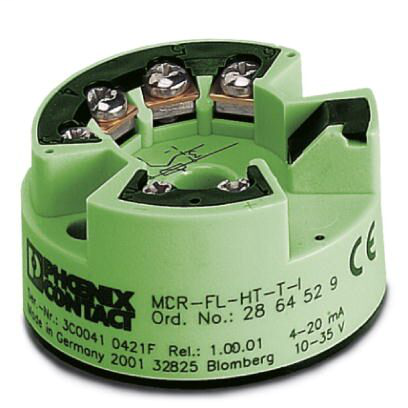

MCR head-mounted temperature transducers: Programmable loop-powered temperature transducers for resistance thermometers, thermocouples, resistance-type sensors and voltage sensorsHead-mounted transducer - MCR-FL-HT-T-I - 2864529
Phoenix Contact 2864529 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C
- Degree of protection
- IP00
- IP66 (Installed in the connection head)
- Noise immunity
- EN 61326-1 (IEC 61326) and NAMUR NE 21
Connection data
- Conductor cross section AWG
- 24 - 15
- Conductor cross section flexible
- 0.2 mm² - 1.75 mm²
- Conductor cross section solid
- 0.2 mm² - 1.75 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Input data
- Configurable/programmable
- Yes, programmable
- Connection technology
- 2, 3, 4-wire
- Linear resistance measuring range
- Resistance-type sensor from 10 Ω to 400 Ω and from 10 Ω to 2000 Ω; minimum measurement range 10 Ω/100 Ω
- Sensor types (RTD) that can be used
- Pt, Ni (100, 500, 1000); minimum measurement range 10 K
- Sensor types that can be used (TC)
- B, C, D, E, J, K, L, N, R, S, T, U; minimum measurement range 50 K/500 K
Output data
- Configurable/programmable
- Yes
- Current output signal
- 4 mA - 20 mA
- 20 mA - 4 mA
- Load/output load current output
- max (Vsupply - 8 V) / 0.025 A (current output)
- Number of outputs
- 1
- Output current range with overrange/underrange
- ≤ 20.5 mA / ≥ 3.8 mA (linear increase/decrease)
- Output current with short-circuit
- ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples)
- Output current with wire break
- ≤ 3.6 mA or ≥ 21 mA (adjustable)
- Output name
- Current output
Power supply
- Designation
- Loop-powered
- Max. current consumption
- < 3.5 mA
- Supply voltage range
- 8 V DC - 35 V DC
Standards and Regulations
- Conformance
- CE-compliant
- Connection in acc. with standard
- CUL
- Electromagnetic compatibility
- Conformance with EMC directive
- Noise emission
- EN 61326-1 (IEC 61326) and NAMUR NE 21
- Noise immunity
- EN 61326-1 (IEC 61326) and NAMUR NE 21
- UL, USA/Canada
- Class I, Div. 2, Groups A, B, C, D
