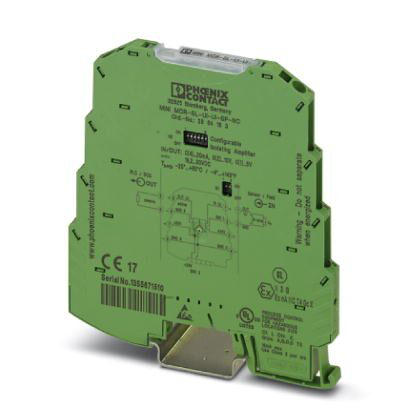

Phoenix Contact 2864163

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 65 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Spring-cage connection
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 102.5 mm
• Height
  • 93.1 mm
• Width
  • 6.2 mm

EMC data

• Designation
  • Electromagnetic RF field
  • Conducted interferences
  • Fast transients (burst)
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-6
• Typical deviation from the measuring range final value
  • 5 %

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Input data

• Configurable/programmable
  • Yes, unconfigured
• Current input signal
  • 0 mA - 20 mA
  • 4 mA - 20 mA
• Input resistance current input
  • approx. 50 Ω
• Input resistance of voltage input
  • approx. 100 kΩ
• Max. input current
  • 50 mA
• max. input voltage
  • 30 V
• Number of inputs
  • 1
• Voltage input signal
  • 2 V - 10 V
  • 0 V - 5 V
  • 1 V - 5 V
  • 0 V - 10 V

Output data

• Configurable/programmable
  • Yes, unconfigured
• Current output signal
  • 4 mA - 20 mA
  • 0 mA - 20 mA (please indicate if different setting when ordering)
• Load/output load current output
  • < 500 Ω (at 20 mA)
• Load/output load voltage output
  • ≥ 10 kΩ
• Max. output current
  • 28 mA
• Max. output voltage
  • approx. 12.5 V
• Number of outputs
  • 1
• Ripple
  • < 20 mVPP (at 500 Ω)
  • < 20 mVPP (at 10 kΩ)
• Short-circuit current
  • approx. 22 mA
• Voltage output signal
  • 0 V - 5 V
  • 0 V - 10 V
  • 2 V - 10 V
  • 1 V - 5 V

Power supply

• Max. current consumption
  • < 9 mA (Voltage output, at 24 V DC incl. load)
  • < 19 mA (Current output, at 24 V DC incl. load)
• Nominal supply voltage
  • 24 V DC
• Power consumption
  • < 450 mW (Current output)
  • < 200 mW (Voltage output)
• Supply voltage range
  • 19.2 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))

Standards and Regulations

• ATEX
  • II 3 G Ex nA IIC T4 Gc X
• Conformance
  • CE-compliant
• Connection in acc. with standard
  • CUL
• Designation
  • Conducted interferences
  • Electromagnetic RF field
• Electrical isolation
  • Basic insulation according to EN 61010
• Electromagnetic compatibility
  • Conformance with EMC directive
• GL
  • GL EMC 2 D
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-4
  • EN 61000-4-2
  • EN 61000-4-6
  • EN 61000-4-5
  • EN 61000-4-3
• UL, USA/Canada
  • UL 508 Recognized
  • Class I, Div. 2, Groups A, B, C, D T5
