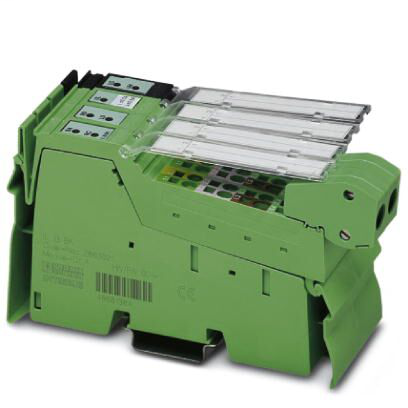

Phoenix Contact 2863070
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline, Bus coupler, INTERBUS, Inline shield connector, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fieldsBus coupler - IL IB BK-PAC - 2863070
Phoenix Contact 2863070 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 75 % - 85 % (in the range of -25°C - +55°C, appropriate measures against increased humidity (> 85%) must be taken.)
- Permissible humidity (storage/transport)
- 75 % - 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.)
Dimensions
- Depth
- 71.5 mm
- Height
- 135 mm
- Width
- 48.8 mm
Electrical isolation
- Test section
- 5 V supply incoming remote bus/7.5 V communications power, 24 V analog supply, 24 V bus coupler supply 500 V AC 50 Hz 1 min.
- 5 V supply, incoming remote bus/5 V supply outgoing remote bus 500 V AC 50 Hz 1 min.
- 5 V supply outgoing remote bus / functional earth ground 500 V AC 50 Hz 1 min.
- 24 V main supply, 24 V segment supply/functional earth ground 500 V AC 50 Hz 1 min.
- 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional earth ground 500 V AC 50 Hz 1 min.
- 5 V supply incoming remote bus / functional earth ground 500 V AC 50 Hz 1 min.
- 5 V supply outgoing remote bus/7.5 V communications power, 24 V analog supply, 24 V bus coupler supply 500 V AC 50 Hz 1 min.
- 5 V supply, outgoing remote bus/24 V main supply, 24 V segment supply 500 V AC 50 Hz 1 min.
- 5 V supply, incoming remote bus/24 V main supply, 24 V segment supply 500 V AC 50 Hz 1 min.
- 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply / 24 V main supply, 24 V segment supply 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
- REACh SVHC
- Lead 7439-92-1
Inline potentials
- Current consumption
- typ. 100 mA (without connected Inline I/O terminals)
- max. 1.25 A (with max. number of connected I/O terminal blocks)
- Designation
- Communications power (UL)
- Main circuit supply (UM)
- Bus coupler supply UBC; Communications power UL (7.5 V) and the analog supply UANA (24 V) are generated from the bus coupler supply.
- Segment circuit supply (US)
- Supply of analog modules (UANA)
- Power supply unit
- max. 0.7 A DC (observe derating)
- max. 8 A DC (sum of UM + US)
- max. 0.5 A DC (observe derating)
- Supply voltage
- 24 V DC (via Inline connector)
- 24 V DC
- 7.5 V DC ±5 %
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Inline shield connector
- Designation
- Inline local bus
- INTERBUS
- No. of channels
- 2
- Transmission physics
- Copper
- Transmission speed
- 500 kbps
Standards and Regulations
- Connection in acc. with standard
- CUL
System limits of the bus coupler
- Number of devices with parameter channel
- 62
- Number of local bus devices that can be connected
- 63
- Number of supported branch terminals with remote bus branch
- 0 (A terminal with remote bus branch cannot be used.)
