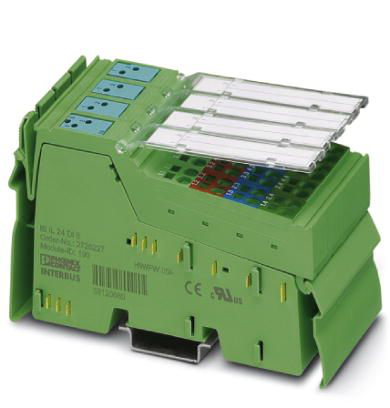

Phoenix Contact 2862932
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline, Digital input terminal, Digital inputs: 8, 24 V DC, connection method: 4-wire, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields, connectors numbered individuallyInline terminal 2862932
Phoenix Contact 2862932 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
Digital inputs
- Connection method
- Spring-cage connection
- Connection technology
- 4-wire
- Description of the input
- EN 61131-2 type 1
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -3 V DC - 5 V DC
- Input voltage range "1" signal
- 15 V DC - 30 V DC
- Number of inputs
- 8
- Type of protection
- Short-circuit and overload protection
- Typical response time
- < 1 ms
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Width
- 48.8 mm
Electrical isolation
- Test section
- 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
- 24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.
- 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min.
- 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Inline potentials
- Current consumption
- max. 50 mA
- max. 2 A
- Designation
- Communications power (UL)
- Segment circuit supply (US)
- Supply voltage
- 7.5 V DC (via voltage jumper)
- 24 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- No. of channels
- 2
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Connection in acc. with standard
- CUL
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
