Description

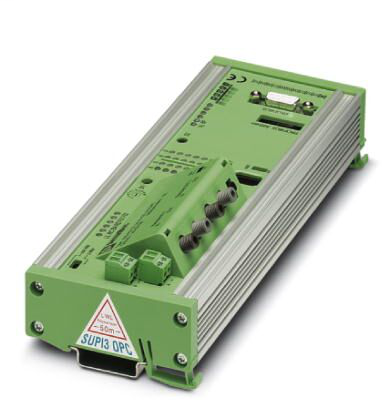

I/O coupling module (gateway) for a PROFIBUS-DP system, FO and D-SUB-9, 24 V DC, IP20 protectionCoupling module - IBS-PB CT 24 IO GT-LK-OPC - 2862796
Phoenix Contact 2862796 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
Dimensions
- Depth
- 37 mm
- Height
- 77 mm
- Width
- 204 mm
Electrical isolation
- Test section
- Supply voltage/logics 500 V AC 50 Hz 1 min.
- INTERBUS system /PROFIBUS-DP system 500 V AC 50 Hz 1 min.
- Supply voltage/functional earth ground 500 V AC 50 Hz 1 min.
- Logics/functional earth ground 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
INTERBUS data
- Maximum distance to the next remote bus device
- 50 m
Interfaces
- Connection method
- D-SUB 9 plug
- F-SMA
- Interface
- INTERBUS remote bus (incoming/outgoing)
- PROFIBUS DP remote bus
- Transmission length
- 50 m (300 m PCF, typical)
- Transmission physics
- FO, wavelength 660 nm
- Copper
Local functions
- Error messages via the bus
- I/O error message (can be switched off)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Max. current consumption
- 200 mA
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V - 30 V
- Typical current consumption
- 150 mA
