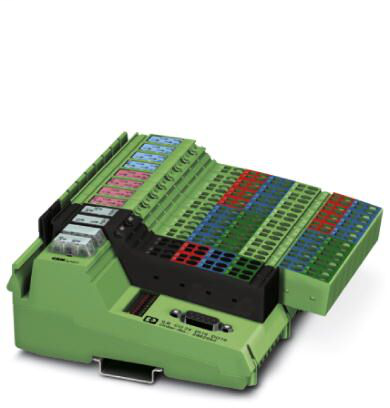

Phoenix Contact 2862592
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline, Block IO, CANopen®, D-SUB-9 female connector, Digital inputs: 16, 24 V DC, connection method: 3-wire, Digital outputs: 16, 24 V DC, 500 mA, connection method: 3-wire, degree of protection: IP20, including Inline connectorI/O module - ILB CO 24 DI16 DO16 - 2862592
Phoenix Contact 2862592 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 108 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (up to 3500 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Digital inputs
- Connection method
- Spring-cage connection
- Connection technology
- 3-wire
- Description of the input
- EN 61131-2 type 1
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -30 V DC - 5 V DC
- Input voltage range "1" signal
- 15 V DC - 30 V DC
- Nominal input current at UIN
- 5 mA
- Nominal input voltage UIN
- 24 V DC
- Number of inputs
- 16
- Protective circuit
- Short-circuit protection, overload protection of the sensor supply
- Typical response time
- approx. 500 µs
Digital outputs
- Connection method
- Spring-cage connection
- Connection technology
- 3-wire
- Limitation of the voltage induced on circuit interruption
- approx. -36 V
- Maximum output current per channel
- 500 mA
- Maximum output current per module
- 8 A
- Maximum output current per module / terminal block
- 8 A
- Nominal load, inductive
- 12 VA
- Nominal load, lamp
- 12 W
- Nominal load, ohmic
- 12 W
- Nominal output voltage
- 24 V DC
- Number of outputs
- 16
- Output name
- Digital outputs
- Output voltage
- 24 V DC
- Protective circuit
- Short-circuit and overload protection
Dimensions
- Caption
- The figure shows the general dimensional drawing of the Inline Block IO product family
- Depth
- 57 mm
- Height
- 141 mm
- Note on dimensions
- Specfications with connectors
- Width
- 156 mm
Electrical isolation
- Test section
- Logic / functional earth ground 500 V AC 50 Hz 1 min.
- I/Os / FE 500 V AC 50 Hz 1 min.
- I/Os / logic 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Interfaces
- Connection method
- D-SUB-9 female connector
- Designation
- CANopen®
- Number of positions
- 9
- Transmission speed
- 10 kbps - 1 Mbps
Standards and Regulations
- Connection in acc. with standard
- CUL
- Mechanical tests
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g
- Noise emission
- Industrial environment
