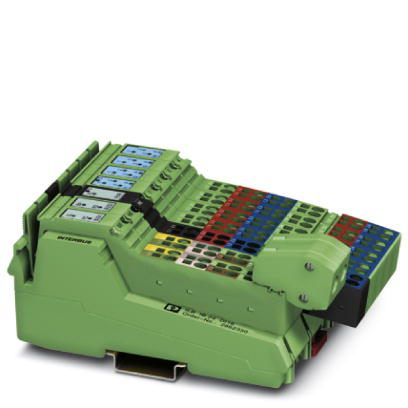

Phoenix Contact 2862330
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline, Block IO, INTERBUS, Inline shield connector, Digital inputs: 16, 24 V DC, connection method: 3-wire, degree of protection: IP20, including Inline connectorI/O module 2862330
Phoenix Contact 2862330 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 108 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (up to 3500 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- max. 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Digital inputs
- Connection method
- Spring-cage connection
- Connection technology
- 3-wire
- Description of the input
- EN 61131-2 type 1
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -30 V DC - 5 V DC
- Input voltage range "1" signal
- 15 V DC - 30 V DC
- Nominal input current at UIN
- 5 mA
- Number of inputs
- 16
- Type of protection
- Short-circuit protection, overload protection of the sensor supply
- Typical response time
- approx. 500 µs
Dimensions
- Caption
- The figure shows the general dimensional drawing of the Inline Block IO product family
- Depth
- 57 mm
- Height
- 141 mm
- Note on dimensions
- Specfications with connectors
- Width
- 95 mm
Electrical isolation
- Test section
- I/Os / incoming remote bus 500 V AC 50 Hz 1 min.
- I/Os / outgoing remote bus 500 V AC 50 Hz 1 min.
- I/O area / FE 500 V AC 50 Hz 1 min.
- Incoming remote bus / FE 500 V AC 50 Hz 1 min.
- Incoming remote bus / outgoing remote bus 500 V AC 50 Hz 1 min.
- Outgoing remote bus / FE 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Interfaces
- Connection method
- Inline shield connector
- Designation
- INTERBUS
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Connection in acc. with standard
- CUL
- Mechanical tests
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
- Noise emission
- Class B (residential)
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
