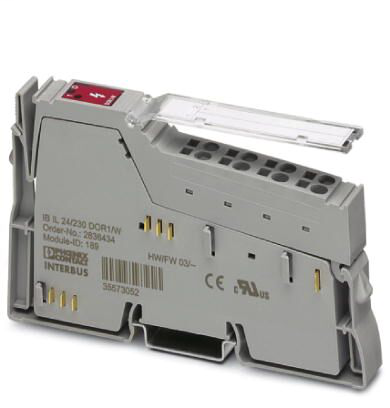

Phoenix Contact 2862110

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 55 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 75 % - 85 % (in the range of -25°C - +55°C, appropriate measures against increased humidity (> 85%) must be taken.)
• Permissible humidity (storage/transport)
  • 75 % - 85 % (slight temporary condensation may sometimes appear on the housing)

Digital outputs

• Connection method
  • Spring-cage connection
• Maximum output current per channel
  • 3 A
• Maximum output current per module
  • 3 A
• Nominal output voltage
  • 230 V AC
  • 24 V DC
• Number of outputs
  • 1 (floating contacts)
• Output description
  • SPDT relay contact
• Output name
  • Relay output
• Protective circuit
  • Overload protection, short-circuit protection of outputs

Dimensions

• Depth
  • 71.5 mm
• Height
  • 119.8 mm
• Note on dimensions
  • Housing dimensions
• Width
  • 12.2 mm

Electrical isolation

• Test section
  • Contact / PE 1 kV 50 Hz 1 min.
  • Contact/contact 1 kV 50 Hz 1 min.
  • Relay contact / Bus logics 4 kV 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

Inline potentials

• Current consumption
  • max. 60 mA
• Designation
  • Communications power (UL)
• Supply voltage
  • 7.5 V DC (via voltage jumper)

Interfaces

• Connection method
  • Inline data jumper
• Designation
  • Inline local bus
• No. of channels
  • 2
• Transmission speed
  • 2 Mbps

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Protection class
  • I (МЭК 61140, EN 61140, VDE 0140-1)
