Description

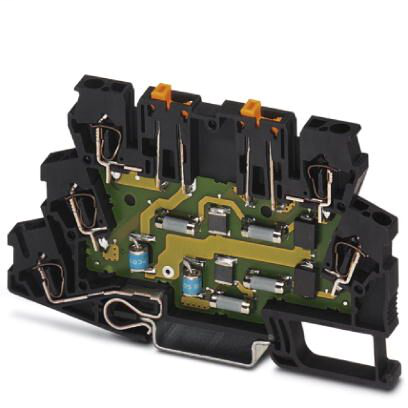

TERMITRAB, spring-cage modular terminal block with integrated surge protection and disconnect knives, for assembly on NS 35/7.5, voltage UN 24 V DC, terminal width: 6.2 mm, cover width: 2.2 mmSurge protection device - TT-ST-M-2/2-24DC - 2858917
Phoenix Contact 2858917 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- max. 2000 m
- Ambient temperature (operation)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Spring-cage connection
- Connection method IN
- Spring-cage
- Connection method OUT
- Spring-cage
- Stripping length
- 8 mm
Dimensions
- Depth
- 65.1 mm (incl. DIN rail 7.5 mm)
- Height
- 100 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Capacity (line-earth)
- 2 nF
- Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system
- typ. 1 MHz
- Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm system
- typ. 3 MHz
- Cut-off frequency fg (3 dB), asym. (PE) in 600 Ohm system
- typ. 250 kHz
- IEC test classification
- C3
- C2
- D1
- C1
- Impulse durability (line-earth)
- C3 - 100 A
- D1 - 1 kA
- C2 - 10 kV / 5 kA
- Input attenuation aE, asym.
- typ. 0.6 dB (500 kHz/50 Ω)
- typ. 0.1 dB (40 kHz / 600 Ω)
- typ. 0.1 dB (170 kHz/150 Ω)
- Max. discharge current Imax (8/20) µs maximum (line-earth)
- 5 kA
- Maximum continuous voltage UC
- 21 V AC
- 30 V DC
- Max. required back-up fuse
- 315 mA
- Nominal discharge current In (8/20) µs (line-earth)
- 5 kA
- Nominal pulse current Ian (10/1000) µs (line-earth)
- 100 A
- 200 A (in total)
- Nominal voltage UN
- 24 V DC
- Operating effective current IC at UC
- ≤ 10 µA (per path)
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 40 V
- Output voltage limitation at 1 kV/µs (line-earth) static
- ≤ 40 V
- Pulse discharge current Iimp (10/350) µs
- 1 kA (per path)
- Rated current
- 300 mA (45 °C)
- Residual current IPE
- ≤ 20 µA
- Residual voltage at In (line-earth)
- ≤ 40 V
- Residual voltage with Ian (10/1000) µs (line-earth)
- ≤ 45 V
- Resistance per path
- 9.4 Ω ±10 %
- Response time tA (line-earth)
- ≤ 1 ns
- Standby power consumption PC
- ≤ 1.86 VA
- Surge protection fault message
- none
- Total discharge current Itotal (10/350) µs
- 2 kA
- Total discharge current Itotal (8/20) µs
- 10 kA
- VDE requirement class
- C1
- D1
- C3
- C2
- Voltage protection level Up (line-earth)
- ≤ 40 V (static)
- ≤ 80 V (C2 - 10 kV / 5 kA)
Standards and Regulations
- Standards/specifications
- IEC 61643-21/A1 2008
- EN 61643-21/A1 2009
