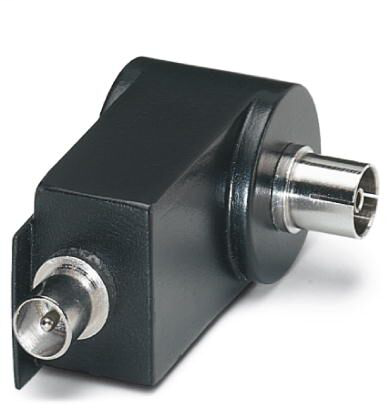

Phoenix Contact 2857002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Attachment plug with surge protection for antenna inputs with TV connectorSurge protection device - C-TV/HIFI - 2857002
Phoenix Contact 2857002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -25 °C - 75 °C
- Degree of protection
- IP20
Connection data
- Connection method
- PAL-TV (IEC 169-2)
- Connection method IN
- Socket
- Connection method OUT
- Male
Dimensions
- Depth
- 61 mm
- Height
- 40 mm
- Width
- 28 mm
Protective circuit
- Alternating current carrying capacity (line-shield)
- 5 A - 1 s
- Capacity asymmetrical (shield)
- typ. 10 pF
- Cut-off frequency fg (3 dB), asym. (shield) in 75 Ohm system
- > 1 GHz
- Frequency range
- 4.7 MHz - 860 MHz
- IEC test classification
- C3
- C2
- D1
- C1
- Impulse durability (line-shield)
- C2 - 5 kV / 2.5 kA
- C2 - 4 kV/2 kA
- C3 - 100 A
- D1 - 500 A
- Input attenuation aE, asym.
- typ. 0.5 dB (≤ 2.4 GHz /75 Ω)
- Maximum continuous voltage UC
- 24 V DC
- Nominal discharge current In (8/20) µs (line-shield)
- 2.5 kA
- Nominal pulse current Ian (10/1000) µs (line-shield)
- 120 A
- Operating effective current IC at UC
- ≤ 1 µA
- Output voltage limitation at 1 kV/µs (line-shield) spike
- ≤ 600 V
- Output voltage limitation at 1 kV/µs (line-shield) static
- ≤ 600 V
- Pulse reset time (line-shield)
- < 3 s
- Rated current
- 1.5 A (25 °C)
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-shield)
- ≤ 30 V
- Response time tA (line-shield)
- ≤ 100 ns
- Surge protection fault message
- none
- Voltage protection level Up (line-shield)
- ≤ 800 V (C2 - 5 kV/2,5 kA)
- ≤ 700 V (C2 - 4 kV / 2 kA)
Standards and Regulations
- Standards/specifications
- IEC 61643-21 2012
- EN 61643-21 2013
- EN 50083 CLASS-A
