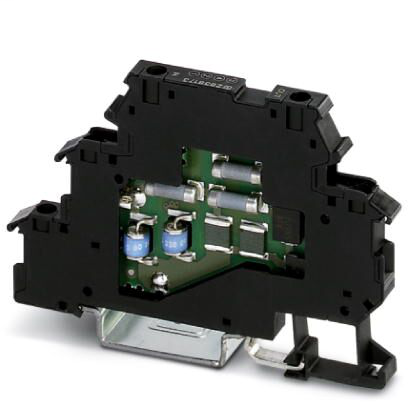

Phoenix Contact 2838173
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modular terminal block with three-stage surge protection for two signal wires with common reference potential, separate ground connection, nominal voltage: 24 V DC, for mounting on NS 35/7.5, terminal width: 6.2 mm, terminal height: 54.6 mmSurge protection device - TT-2/2- 24DC - 2838173
Phoenix Contact 2838173 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m
- Ambient temperature (operation)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection method IN
- Screw terminal blocks
- Connection method OUT
- Screw terminal blocks
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque
- 0.8 Nm
Dimensions
- Depth
- 54.6 mm
- Height
- 79.6 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Alternating current carrying capacity (line-earth)
- 0.5 A - 1 s
- Capacity (line-line)
- ≤ 4 nF
- Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system
- typ. 550 kHz
- Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm system
- typ. 1.5 MHz
- IEC test classification
- C1
- D1
- C3
- C2
- Impulse durability (line-earth)
- C3 - 100 A
- C2 - 10 kV / 5 kA
- C1 - 1 kV / 500 A
- D1 - 500 A
- Input attenuation aE, asym.
- 0.1 dB (≤ 30 kHz/150 Ω)
- 0.4 dB (≤ 200 kHz / 50 Ω)
- Maximum continuous voltage UC
- 30 V DC
- Max. required back-up fuse
- 315 mA (T/IEC 60127-2/3)
- Nominal discharge current In (8/20) µs (line-earth)
- 5 kA
- Nominal pulse current Ian (10/1000) µs (line-earth)
- 100 A
- Nominal voltage UN
- 24 V DC
- Operating effective current IC at UC
- ≤ 10 µA (per path)
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 50 V
- Pulse discharge current Iimp (10/350) µs
- 500 A
- Rated current
- 300 mA (40 °C)
- Residual current IPE
- ≤ 10 µA (per path)
- Resistance per path
- 6.6 Ω ±20 %
- Response time tA (line-earth)
- ≤ 1 ns
- Standby power consumption PC
- ≤ 1430 mVA
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 10 kA
- Voltage protection level Up (line-earth)
- ≤ 130 V (D1 - 500 A)
- ≤ 55 V (C1 - 1 kV/500 A)
- ≤ 90 V (C2 - 10 kV / 5 kA)
- ≤ 50 V (C3 - 100 A)
- ≤ 45 V (C3 - 10 A)
Standards and Regulations
- Standards/specifications
- EN 61643-21/A1 2009
- IEC 61643-21/A1 2008
