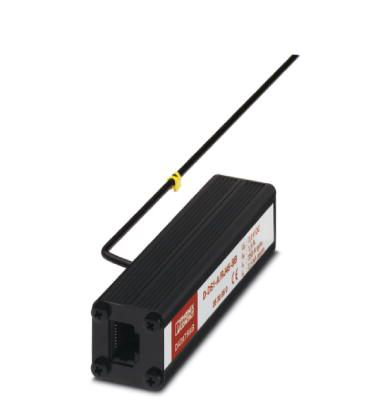

Phoenix Contact 2838050

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 80 °C
• Degree of protection
  • IP20

Connection data

• Connection method
  • RJ45
• Connection method IN
  • RJ45 socket
• Connection method OUT
  • RJ45 socket

Dimensions

• Depth
  • 102 mm
• Height
  • 25.4 mm
• Width
  • 25.4 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values
• REACh SVHC
  • Lead 7439-92-1

Protective circuit

• Capacity (line-line)
  • 20 pF (f=1 MHz / VR= 0 V)
• Cut-off frequency fg (3 dB), sym. in 100 Ohm system
  • ≥ 100 MHz
• IEC test classification
  • D1
  • C2
  • C3
• Impulse durability (line-earth)
  • C2 - 10 kV/5 kA
  • D1 - 1 kA
• Impulse durability (line-line)
  • C1 - 500 V / 250 A
• Input attenuation aE, sym.
  • 0.1 dB (≤ 10 MHz)
• Maximum continuous voltage U_C
  • 7 V DC
• Nominal current I_N
  • 1.5 A (25 °C)
• Nominal discharge current I_n (8/20) µs (line-earth)
  • 2.5 kA
• Nominal discharge current I_n (8/20) µs (line-line)
  • 350 A
• Operating effective current I_C at U_C
  • ≤ 1 mA
• Output voltage limitation at 1 kV/µs (line-earth) spike
  • ≤ 450 V
• Output voltage limitation at 1 kV/µs (line-earth) static
  • ≤ 450 V
• Output voltage limitation at 1 kV/µs (line-line) static
  • ≤ 20 V
• Residual current I_PE
  • ≤ 4 µA
• Residual voltage at I_n (line-earth)
  • ≤ 25 V
• Residual voltage at I_n (line-line)
  • ≤ 50 V
• Response time t_A (line-earth)
  • ≤ 100 ns
• Response time t_A (line-line)
  • ≤ 500 ns
• Surge protection fault message
  • none
• Total surge current (8/20) µs
  • 10 kA
• VDE requirement class
  • D1
  • C2
  • C3
• Voltage protection level U_p (line-earth)
  • ≤ 600 V
• Voltage protection level U_p (line-line)
  • ≤ 50 V

Standards and Regulations

• Standards/regulations
  • IEC 61643-21
• Standards/specifications
  • IEC 61643-21
