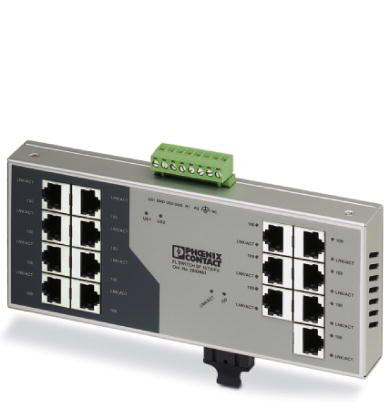

Phoenix Contact 2832661
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ethernet Switch, 15 TP RJ45 ports, 1 FO port, 100 Mbps full duplex in SC-D format, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing functionIndustrial Ethernet Switch - FL SWITCH SF 15TX/FX - 2832661
Phoenix Contact 2832661 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 86 kPa - 108 kPa (up to 1500 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (up to 3500 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
Dimensions
- Depth
- 30 mm
- Height
- 115.3 mm
- Width
- 205 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 10;
- REACh SVHC
- Lead 7439-92-1
Function
- Additional functions
- Autonegotiation
- Basic functions
- Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
- Status and diagnostic indicators
- LEDs: US₁, US₂ (redundant voltage supply), link and activity per port
Interfaces
- Connection method
- Plug-in/screw connection via COMBICON
- Interface
- Ethernet (RJ45)
- Potential-free signaling contact
- Fiber optic interface
- No. of ports
- 1 (SC multi-mode)
- 15 (RJ45 ports)
- Note on the connection method
- Auto negotiation and autocrossing
- Signal LEDs
- Data receive, link status
- Transmission length
- 100 m (per segment)
- 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
- Transmission physics
- multi-mode fiberglass
- Ethernet in RJ45 twisted pair
- Transmission speed
- 100 Mbps (full duplex)
- 10/100 Mbps
- Wavelength
- 1300 nm
Network expansion parameters
- Cascading depth
- Network, linear, and star structure: any
- Maximum conductor length (twisted pair)
- 100 m
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2004/108/EC
- Noise emission
- EN 61000-6-4
- Noise immunity
- EN 61000-6-2:2005
- Vibration (operation)
- in acc. with IEC 60068-2-6: 5g, 150 Hz
- Vibration (storage/transport)
- 5g, 150 Hz, in acc. with IEC 60068-2-6
Supply voltage
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC (redundant)
- Supply voltage range
- 18.5 V DC - 30.2 V DC
- Typical current consumption
- 193 mA (at US = 24 V DC)
