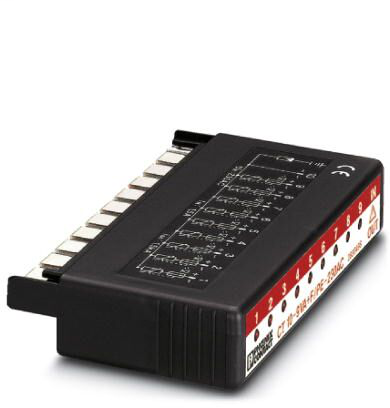

Phoenix Contact 2830498
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LSA-PLUS plug (COMTRAB CT 10) with surge protection incl. visual fault warning for nine 2-core signal circuits. Nominal voltage: 230 V AC. Design: 10 double wiresSurge protection plug - CT 10-9VA-230AC - 2830498
Phoenix Contact 2830498 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 mm (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Connection method
- can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips
- Connection method IN
- COMTRAB plug-in system
- Connection method OUT
- COMTRAB plug-in system
Dimensions
- Depth
- 68.5 mm
- Height
- 22 mm
- Width
- 111 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Capacity (line-earth)
- typ. 2 pF (10-PE)
- Capacity (line-signalground)
- typ. 320 pF
- Fixed cable length
- 10 m
- Frequency range
- 50 Hz - 60 Hz
- IEC test classification
- C3
- C1
- Impulse durability (line-earth)
- C2 - 3 kV/1.5 kA
- Impulse durability (line-signalground)
- C2 - 3 kV/1.5 kA
- Impulse durability (signalground-earth)
- C2 - 10 kV/5 kA
- Max. discharge current Imax (8/20) µs maximum (line-earth)
- 5 kA (10-PE)
- Max. discharge current Imax (8/20) µs maximum (line-signalground)
- 3 kA
- Maximum continuous voltage UC
- 275 V AC
- 275 V DC
- Max. required back-up fuse
- 200 mA DC (F)
- 1.5 A AC (gL)
- Nominal discharge current In (8/20) µs (line-earth)
- 1.5 kA
- Nominal discharge current In (8/20) µs (line-signal ground)
- 1.5 kA
- Nominal discharge current In (8/20) µs (signalground-earth)
- 5 kA
- Nominal voltage UN
- 230 V AC
- 250 V DC
- Operating effective current IC at UC
- ≤ 1.5 mA AC (per path)
- ≤ 2 mA DC (per path)
- Rated current
- 200 mA DC (per path)
- 1.5 A AC (per path)
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-earth)
- ≤ 1.4 kV
- Residual voltage at In (line-signalground)
- ≤ 1.1 kV
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 25 ns
- Response time tA (line-signalground)
- ≤ 25 ns
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 5 kA
- Voltage protection level Up (line-earth)
- ≤ 1.4 kV (10-PE)
- Voltage protection level Up (line-signalground)
- ≤ 1.1 kV
Standards and Regulations
- Standards/specifications
- IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
- EN 61643-21 2001 + A1:2009 + A2:2013
