Description

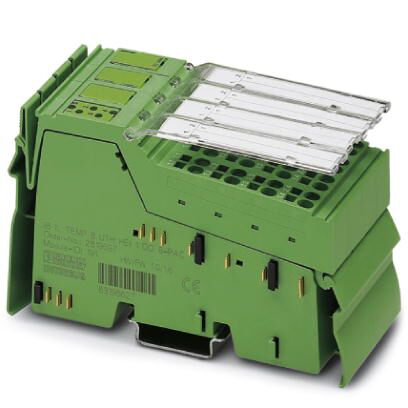

Inline temperature measurement terminal, complete with accessories (connector and labeling field) with process data multiplex with 8 thermocouple inputs, 8 binary outputs (24 V, 70 mA), 1 input for recording the total current of heating elements.Inline function terminal - IB IL TEMP 8 UTH HEI 1 DO8-PAC - 2819697
Phoenix Contact 2819697 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 75% average, 85% seldom
- Permissible humidity (storage/transport)
- 75% average, 85% seldom
Analog inputs
- A/D conversion time
- max. 225 ms
- Connection method
- Spring-cage connection
- Connection technology
- 2-wire (floating)
- Input name
- Analog UTH inputs
- Measured value representation
- Depends on thermocouple
- Number of inputs
- 8
- Sensor types that can be used (TC)
- B, C, D, E, J, K, L, N, R, S, T
Digital outputs
- Number of outputs
- 8
- Output current
- 70 mA (short-circuit-proof)
- Output name
- Digital outputs
- Output voltage
- 24 V DC
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Width
- 48.8 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Inline potentials
- Current consumption
- typ. 20 mA
- max. 30 mA
- typ. 90 mA
- max. 600 mA
- max. 150 mA
- Designation
- Segment circuit supply (US)
- Supply of analog modules (UANA)
- Communications power (UL)
- Supply voltage
- 7.5 V DC (via voltage jumper)
- 24 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
- 19.2 V DC - 30 V DC
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- Transmission physics
- Copper
- Transmission speed
- 500 kbps
