Description

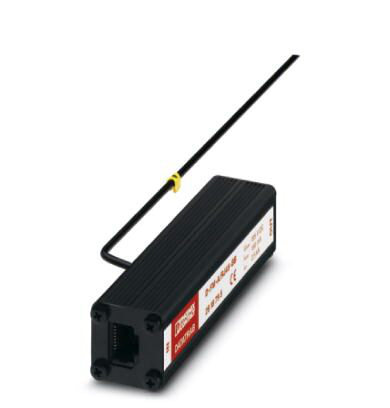

Attachment connector with surge protection for analog telecommunication interfaces. Connection: RJ45 socketsSurge protection device - D-FM-A/RJ45-BB - 2818795
Phoenix Contact 2818795 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Connection method
- RJ45
- Connection method IN
- RJ45 socket
- Connection method OUT
- RJ45 socket
Dimensions
- Depth
- 102 mm
- Height
- 25.4 mm
- Width
- 25.4 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- IEC test classification
- C3
- C2
- Inductivity in series
- 39 µH ±10 %
- Maximum continuous voltage UC
- 185 V DC
- Nominal current IN
- 150 mA
- Nominal discharge current In (8/20) µs (line-earth)
- 2.5 kA
- Operating effective current IC at UC
- ≤ 10 µA
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 1.4 kV
- Output voltage limitation at 1 kV/µs (line-earth) static
- ≤ 1.4 kV
- Output voltage limitation at 1 kV/µs (line-line) spike
- ≤ 300 V
- Output voltage limitation at 1 kV/µs (line-line) static
- ≤ 300 V
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-earth)
- ≤ 150 V
- Residual voltage at In (line-line)
- ≤ 50 V
- Resistance per path
- 1 Ω
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 10 ns
- Short-circuit current self-quenching
- 150 mA
- Surge protection fault message
- none
- VDE requirement class
- C3
- C2
- Voltage protection level Up (line-earth)
- ≤ 1.4 kV
- Voltage protection level Up (line-line)
- ≤ 300 V
Standards and Regulations
- Standards/regulations
- E VDE 0845-3-1
- Draft IEC 64644-1
