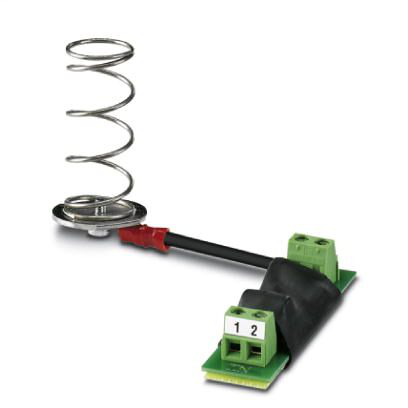

Phoenix Contact 2818216
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 2818216 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 65 °C
Connection data
- Conductor cross section AWG max.
- 16
- Conductor cross section AWG min.
- 26
- Conductor cross section flexible max.
- 1.5 mm²
- Conductor cross section flexible min.
- 0.14 mm²
- Conductor cross section solid max.
- 1.5 mm²
- Conductor cross section solid min.
- 0.14 mm²
- Connection method
- Screw connection
- Connection method IN
- Screw terminal blocks
- Connection method OUT
- Screw terminal blocks
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Note
- Trade restriction
- The products are offered exclusively for export outside the EU and the European Economic Area.
Protective circuit
- Nominal current IN
- 250 mA (25 °C)
- Nominal discharge current In (8/20) µs (line-line)
- 10 kA
- Nominal voltage UN
- 24 V DC
- Operating effective current IC at UC
- ≤ 5 µA
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 450 V
- Output voltage limitation at 1 kV/µs (line-line) spike
- ≤ 40 V
- Resistance per path
- 10 Ω
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 1 ns
- Surge protection fault message
- none
- Voltage protection level Up (line-earth)
- ≤ 550 V
- Voltage protection level Up (line-line)
- ≤ 55 V
