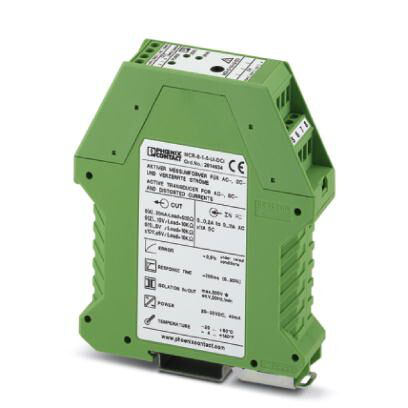

Phoenix Contact 2814634

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 60 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Maximum altitude
  • < 2000 m
• Noise immunity
  • EN 61000-6-2

Conformance/approvals

• Designation
  • UL, USA/Canada
  • CE
• Identification
  • CE-compliant
  • Class I, Div. 2, Groups A, B, C and D or Non-Hazardous Locations Only
  • Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X

Connection data

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 114.5 mm
• Height
  • 99 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Configurable/programmable
  • Yes, preconfigured
• Connection method
  • Screw connection
• Frequency measuring range
  • 15 Hz - 400 Hz
• Impulse form
  • AC, DC or distorted currents
• Input
  • Current measuring input
• Input current range
  • 0 A - 11 A (AC/DC)
• Number of inputs
  • 3
• Operate threshold
  • 2 % (of measuring range nominal value 1/5/10 A)
• Overload capacity
  • 2 x IN (continuous)
• Setting range for max. input current
  • 0 A - 11 A
• Setting range for min. input current
  • 0 A - 200 mA
• Surge strength
  • 20 x IN (1 s)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Configurable/programmable
  • Yes, preconfigured
• Current output signal
  • 0 mA - 20 mA
  • 20 mA - 4 mA
  • 20 mA - 0 mA
  • 4 mA - 20 mA
• Load/output load current output
  • < 500 Ω
• Load/output load voltage output
  • > 10 kΩ
• Output name
  • Voltage output / current output
• Voltage output signal
  • 1 V - 5 V
  • 5 V - 0 V
  • 5 V - 1 V
  • 10 V - 0 V
  • 5 V - -5 V
  • 0 V - 5 V
  • 10 V - -10 V
  • 2 V - 10 V
  • -10 V - 10 V
  • -5 V - 5 V
  • 10 V - 2 V
  • 0 V - 10 V

Power supply

• Max. current consumption
  • < 40 mA (without load)
• Supply voltage range
  • 20 V DC - 30 V DC

Standards and Regulations

• Conformance
  • CE-compliant
• Connection in acc. with standard
  • CUL
• Electromagnetic compatibility
  • Conformance with EMC directive
• Low Voltage Directive
  • Conformance with Low Voltage Directive
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C and D or Non-Hazardous Locations Only
  • Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X

Switching output

• Output name
  • No switching output
