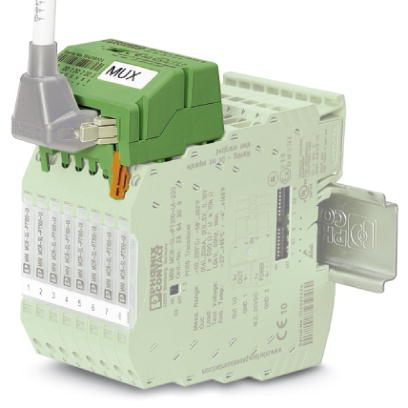

Phoenix Contact 2811815
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MINI analog multiplexer, generates one analog output from 8 analog input signals, for MINI analog module with screw connection.Multiplexer 2811815
Phoenix Contact 2811815 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
Dimensions
- Depth
- 46.2 mm
- Height
- 45.5 mm
- Width
- 50.4 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Input data
- Configurable/programmable
- Via DIP switches
- Current input signal
- 4 mA - 20 mA
- Description of the input
- 2, 4, 6, or 8-channel(can be switched over)
- Max. input current
- < 30 mA
Output data
- Current output signal
- 4 mA - 20 mA
- Load/output load current output
- (Usupply - 7 V) / I max
- Max. output current
- < 30 mA
- Status display
- 1, 2, 3-bit digital output (can be selected)
Power supply
- Designation
- Loop-powered
- Max. current consumption
- < 3.5 mA (without signal current)
- Power consumption
- < 24 mW (without signal current)
- Supply voltage range
- 7 V DC - 30 V DC (Loop-powered)
Standards and Regulations
- ATEX
- II 3 G Ex nA IIC T4 Gc X
- Conformance
- CE-compliant
- Electromagnetic compatibility
- Conformance with EMC directive
- Flammability rating according to UL 94
- V0
- Noise emission
- EN 61000-6-4
- UL, USA/Canada
- UL 508 Recognized applied for
- Class I, Div. 2, Groups A, B, C, D T5 applied for
- Vibration resistance
- ≤ 0,7g
Switching output
- Maximum switching voltage
- 30 V DC
- Output name
- 3 x PNP optocouplers
