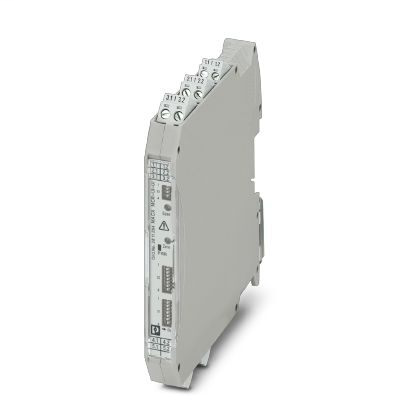

Phoenix Contact 2811284

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20 (not assessed by UL)
• Maximum altitude
  • ≤ 2000 m
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.

Connection data

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 7 mm

Dimensions

• Depth
  • 113.7 mm
• Height
  • 112.5 mm
• Width
  • 12.5 mm

EMC data

• Designation
  • Fast transients (burst)
  • Conducted interferences
  • Electromagnetic RF field
• Standards/regulations
  • EN 61000-4-6
  • EN 61000-4-3
  • EN 61000-4-4
• Typical deviation from the measuring range final value
  • 1 %

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Current input signal
  • 4 mA - 20 mA
  • -1 mA - 1 mA
  • 0 mA - 3 mA
  • -3 mA - 3 mA
  • -2 mA - 2 mA
  • -10 mA - 10 mA
  • 0 mA - 10 mA
  • -100 mA - 100 mA
  • -1.5 mA - 1.5 mA
  • 0 mA
  • 0 mA - 15 mA
  • 1 mA - 5 mA
  • 0 mA - 20 mA
  • -50 mA - 50 mA
  • 2 mA - 10 mA
  • -30 mA - 30 mA
  • -15 mA - 15 mA
  • -5 mA - 5 mA
  • 0 mA - 5 mA
  • 0 mA - 1 mA (Configurable via DIP switches)
  • 0 mA - 30 mA
  • 0 mA - 100 mA
  • 0 mA - 2 mA
  • -20 mA - 20 mA
  • 0 mA - 50 mA
• Description of the input
  • Measuring input
• Input resistance current input
  • approx. 10 Ω (± 10 mA DC - ± 100 mA DC)
• Input resistance of voltage input
  • approx. 1 MΩ (±1 V DC - ±100 V DC)
• Max. input current
  • ± 100 mA
• max. input voltage
  • ± 100 V
• Min. input voltage
  • ± 50 mV
• Number of inputs
  • 1
• Voltage input signal
  • 0 V - 1 V
  • -300 mV - 300 mV
  • 0 mV - 75 mV
  • -50 mV - 50 mV
  • -75 mV - 75 mV
  • 0 V - 1.5 V
  • -1 V - 1 V
  • -15 V - 15 V
  • 2 V - 10 V
  • -120 mV - 120 mV
  • 0 mV - 200 mV
  • -200 mV - 200 mV
  • 0 mV - 50 mV
  • -30 V - 30 V
  • -3 V - 3 V
  • 0 mV - 500 mV
  • 0 V - 10 V (please indicate if different setting when ordering)
  • 1 V - 5 V
  • 0 V - 50 V
  • -20 V - 20 V
  • -100 mV - 100 mV
  • 0 mV - 300 mV
  • 0 V - 3 V
  • 0 mV - 100 mV
  • -5 V - 5 V
  • -500 mV - 500 mV
  • 0 mV - 150 mV
  • -50 V - 50 V
  • -1.5 V - 1.5 V
  • 0 V - 5 V
  • 0 V - 100 V
  • 0 V - 15 V
  • -2 V - 2 V
  • -60 mV - 60 mV
  • -100 V - 100 V
  • 0 mV - 120 mV
  • 0 V - 30 V
  • 0 V - 20 V
  • -150 mV - 150 mV
  • 0 V - 2 V
  • -10 V - 10 V
  • 0 mV - 60 mV

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Configurable/programmable
  • Yes, can be switched
• Current output signal
  • -20 mA - 20 mA
  • 0 mA - 20 mA (please indicate if different setting when ordering)
  • 0 mA - 5 mA
  • 2 mA - 10 mA
  • 0 mA - 10 mA
  • -5 mA - 5 mA
  • -10 mA - 10 mA
  • 4 mA - 20 mA
  • 1 mA - 5 mA
• Load/output load current output
  • passive: ≤ (UB-2 V) / Ioutmax
  • ≤ 600 Ω (20 mA; active)
• Load/output load voltage output
  • ≥ 1 kΩ (10 V)
• Number of outputs
  • 1
• Output name
  • Screw fastening
• Ripple
  • < 10 mVrms
• Voltage output signal
  • 0.5 V - 2.5 V
  • -2.5 V - 2.5 V
  • -5 V - 5 V
  • 2 V - 10 V
  • 0 V - 5 V
  • 1 V - 5 V
  • -10 V - 10 V
  • 0 V - 2.5 V
  • 0 V - 10 V (Configurable via DIP switches)

Power supply

• Supply voltage range
  • 12 V DC - 24 V DC (-20 % - +25 %)

Standards and Regulations

• ATEX
  • II 3 G Ex nA IIC T4 Gc
• Conformance
  • CE-compliant
• Designation
  • Conducted interferences
  • Electromagnetic RF field
• DNV GL-EMC
  • A
• DNV GL-Enclosure
  • Required protection according to the Rules shall be provided upon installation on board
• DNV GL-Humidity
  • B
• DNV GL-Temperature
  • B
• DNV GL-Vibration
  • A
• Electromagnetic compatibility
  • Conformance with EMC directive
• IECEx
  • Ex nA IIC T4 Gc
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-4
  • EN 61000-4-6
  • EN 61000-4-3
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C, D T6
  • UL 61010 Listed
  • Class I, Zone 2, Group IIC
