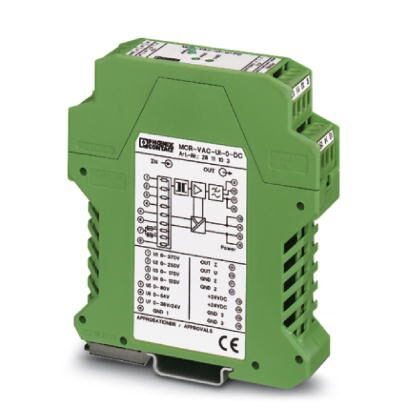

Phoenix Contact 2811103
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MCR voltage measuring transducer, for alternating current voltages from 0..20 V AC to 0..440 V AC, output signal 0..10 V/0(4)..20 mAVoltage measuring transducers - MCR-VAC-UI-O-DC - 2811103
Phoenix Contact 2811103 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C (non-condensing)
- Degree of protection
- IP20
- Maximum altitude
- < 2000 m
- Noise immunity
- EN 61000-6-2
Conformance/approvals
- Designation
- CE
- UL, USA/Canada
- Identification
- CE-compliant
- cULus
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Pluggable screw connection
- Connection technology
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input resistance
- 36 kΩ
- 54 kΩ
- 370 kΩ
- 24 kΩ
- 250 kΩ
- 120 kΩ
- 170 kΩ
- 80 kΩ
- Input voltage range
- 0 V - 170 V AC
- 0 V - 370 V AC
- 0 V - 54 V AC
- 0 V - 80 V AC
- 0 V - 250 V AC
- 0 V - 120 V AC
- 0 V - 24 V AC
- 0 V - 36 V AC
- Nom. voltage
- 440 V (ungrounded)
- 250 V (to earth)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Current output signal
- 0 mA - 20 mA
- 4 mA - 20 mA
- Load/output load current output
- < 500 Ω
- Load/output load voltage output
- > 10 kΩ
- Max. output current
- 30 mA
- Max. output voltage
- 15 V
- Output name
- Voltage output
- Current output
- Ripple
- < 50 mVPP
- Voltage output signal
- 0 V - 10 V
Power supply
- Max. current consumption
- < 45 mA
- Supply voltage range
- 18.5 V DC - 30.2 V DC
Standards and Regulations
- Conformance
- CE-compliant
- Connection in acc. with standard
- CUL
- Electromagnetic compatibility
- Conformance with EMC directive
- Noise emission
- EN 61000-6-4
- Noise immunity
- EN 61000-6-2
- UL, USA/Canada
- cULus
