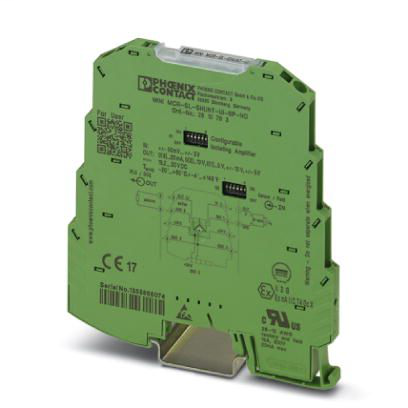

Phoenix Contact 2810793

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 65 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Maximum altitude
  • ≤ 2000 m

Connection data

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• Connection technology
  • 2-wire
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 102.5 mm
• Height
  • 93.1 mm
• Width
  • 6.2 mm

EMC data

• Designation
  • Electromagnetic RF field
  • Conducted interferences
  • Fast transients (burst)
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-4
• Typical deviation from the measuring range final value
  • 6 %
  • 6 %
  • 6 %

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
  • Environmentally Friendly Use Period = 50

Input data

• Configurable/programmable
  • Yes, unconfigured
• Input resistance of voltage input
  • approx. 10 kΩ
• max. input voltage
  • approx. 3 V DC
• Number of inputs
  • 1
• Voltage input signal
  • -80 mV - 80 mV
  • 0 mV - 80 mV
  • -300 mV - 300 mV
  • 0 mV - 750 mV
  • 0 mV - 120 mV
  • -120 mV - 120 mV
  • 0 V - 3 V
  • 0 mV - 75 mV
  • 0 V - 1 V
  • 0 mV - 800 mV
  • -100 mV - 100 mV
  • -200 mV - 200 mV
  • 0 mV - 200 mV
  • -1 V - 1 V
  • 0 V - 2.4 V
  • 0 V - 1.5 V
  • -150 mV - 150 mV
  • -50 mV - 50 mV
  • -3 V - 3 V
  • -60 mV - 60 mV
  • 0 mV - 300 mV
  • 0 mV - 500 mV
  • -750 mV - 750 mV
  • 0 mV - 600 mV
  • -2 V - 2 V
  • 0 V - 2 V
  • 0 mV - 100 mV
  • 0 mV - 150 mV
  • 0 mV - 240 mV
  • 0 mV - 50 mV
  • -2.4 V - 2.4 V
  • -800 mV - 800 mV
  • 0 mV - 60 mV
  • -1.2 V - 1.2 V
  • -1.5 V - 1.5 V
  • -500 mV - 500 mV
  • 0 V - 1.2 V
  • -600 mV - 600 mV
  • -75 mV - 75 mV
  • -240 mV - 240 mV

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Configurable/programmable
  • Yes, unconfigured
• Current output signal
  • 0 mA - 20 mA
  • 4 mA - 20 mA
• Load/output load current output
  • < 500 Ω (at 20 mA)
• Load/output load voltage output
  • ≥ 10 kΩ
• Number of outputs
  • 1
• Ripple
  • < 20 mVPP (at 10 kΩ)
  • < 20 mVPP (at 500 Ω)
• Voltage output signal
  • -5 V - 5 V (The bi-polar output can be used only for bi-polar input signals.)
  • -10 V - 10 V (The bi-polar output can be used only for bi-polar input signals.)
  • 0 V - 10 V
  • 0 V - 5 V
  • 2 V - 10 V
  • 1 V - 5 V

Power supply

• Max. current consumption
  • < 25 mA
• Nominal supply voltage
  • 24 V DC
• Power consumption
  • < 450 mW (Current output)
• Supply voltage range
  • 19.2 V DC - 30 V DC

Standards and Regulations

• ATEX
  •  II 3 G Ex nA IIC T4 Gc X
• Conformance
  • CE-compliant
• Connection in acc. with standard
  • CUL
• Designation
  • Electromagnetic RF field
  • Conducted interferences
• Electrical isolation
  • Basic insulation according to EN 61010
• Electromagnetic compatibility
  • Conformance with EMC directive
• Fire protection for rail vehicles (DIN EN 45545-2) R22
  • HL 1 - HL 2
• Fire protection for rail vehicles (DIN EN 45545-2) R23
  • HL 1 - HL 2
• Fire protection for rail vehicles (DIN EN 45545-2) R24
  • HL 1 - HL 2
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-6
  • EN 61000-4-4
  • EN 61000-4-3
  • EN 61000-4-2
  • EN 61000-4-5
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C, D T4
  • UL 508 Recognized
