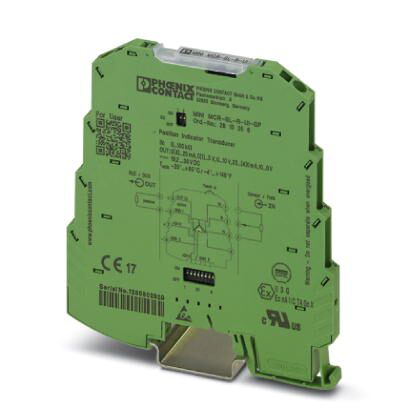

Phoenix Contact 2810256
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The MCR potiposition transducer for converting potentiometer positions to an analog standard signal, input 0 kΩ ... 100 Ω to 0 kΩ ... 100 kΩ. Replacement part: 2902017 MINI MCR-2-POT-UI-PT.Resistance/potiposition transducer - MINI MCR-SL-R-UI-SP - 2810256
Phoenix Contact 2810256 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Maximum altitude
- ≤ 2000 m
- Noise immunity
- EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Spring-cage connection
- Stripping length
- 8 mm
Dimensions
- Depth
- 102.5 mm
- Height
- 93.1 mm
- Width
- 6.2 mm
EMC data
- Designation
- Conducted interferences
- Electromagnetic RF field
- Fast transients (burst)
- Standards/regulations
- EN 61000-4-4
- EN 61000-4-6
- EN 61000-4-3
- Typical deviation from the measuring range final value
- 5 %
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Input data
- Potentiometer
- 100 Ω - 100 kΩ
- Reference voltage source
- < 3.6 V
Output data
- Current output signal
- 4 mA - 20 mA
- 20 mA - 4 mA
- 0 mA - 20 mA
- 20 mA - 0 mA
- Load/output load current output
- < 500 Ω (20 mA)
- Load/output load voltage output
- > 10 kΩ
- Max. current output signal
- 23 mA
- Max. voltage output signal
- 12.5 V
- Voltage output signal
- 1 V - 5 V
- 10 V - 0 V
- 0 V - 10 V
- 0 V - 5 V
Power supply
- Nominal supply voltage
- 24 V DC
- Power consumption
- < 500 mW
- Supply voltage range
- 19.2 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
- Typical current consumption
- < 25 mA (at 24 V DC)
Standards and Regulations
- ATEX
- II 3 G Ex nA IIC T4 Gc X
- Conformance
- CE-compliant
- Connection in acc. with standard
- CUL
- Designation
- Electromagnetic RF field
- Conducted interferences
- Electrical isolation
- Basic insulation according to EN 61010
- Electromagnetic compatibility
- Conformance with EMC directive
- Noise emission
- EN 61000-6-4
- Standards/regulations
- EN 61000-4-4
- EN 61000-4-3
- EN 61000-4-6
- UL, USA/Canada
- UL 508 Recognized
- Class I, Div. 2, Groups A, B, C, D T4
