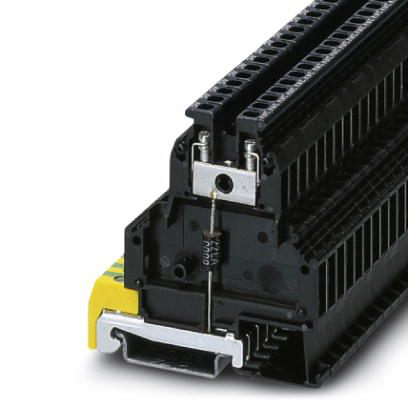

Phoenix Contact 2809649

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 85 °C
• Degree of protection
  • IP20

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 4 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection method IN
  • Screw terminal blocks
• Connection method OUT
  • Screw terminal blocks
• Screw thread
  • M3
• Stripping length
  • 8 mm
• Tightening torque
  • 0.5 Nm

Dimensions

• Depth
  • 69.5 mm
• Height
  • 66.5 mm
• Width
  • 6.2 mm

Environmental Product Compliance

• REACh SVHC
  • Lead 7439-92-1
  • 4-Nonylphenol, ethoxylated

Protective circuit

• Capacity (line-earth)
  • 1.03 nF
• Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system
  • typ. 1.6 MHz
• IEC test classification
  • C3
• Impulse durability (line-earth)
  • C3 - 10 A
• Max. discharge current I_max (8/20) µs maximum (line-earth)
  • 119 A
• Maximum continuous voltage U_C
  • 28 V AC
  • 40 V DC
• Nominal discharge current I_n (8/20) µs (line-earth)
  • 119 A
• Nominal pulse current Ian (10/1000) µs (line-earth)
  • 23.2 A
• Nominal voltage U_N
  • 24 V AC
• Operating effective current I_C at U_C
  • ≤ 5 µA
• Output voltage limitation at 1 kV/µs (line-earth) spike
  • ≤ 62 V
• Output voltage limitation at 1 kV/µs (line-earth) static
  • ≤ 58 V
• Rated current
  • 32 A (50 °C)
• Residual current I_PE
  • ≤ 5 µA
• Residual voltage at I_n (line-earth)
  • ≤ 84 V
• Response time t_A (line-earth)
  • ≤ 1 ns
• Surge protection fault message
  • none
• Total discharge current I_total (8/20) µs
  • 119 A
• VDE requirement class
  • C3

Standards and Regulations

• Standards/regulations
  • IEC 61643-21
