Description

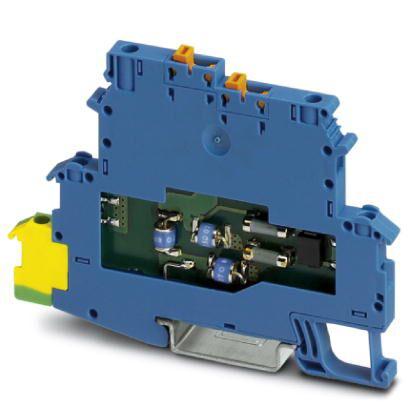

Modular terminal block with two-stage surge protection for a floating Ex-i signal circuit, disconnect knife on both signal paths, separate PE connection, nominal voltage: 24 V DCSurge protection device - TT-EX(I)-M-24DC - 2803865
Phoenix Contact 2803865 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Degree of protection
- IP20 (with end cover)
Conformity / approvals
- ATEX
- II 1D Ex ia IIIC T135°C...T85°C Da
- II 1G Ex ia IIC T4...T6 Ga
- IECEx
- Ex ia IIIC T135 °C...T85 °C Da
- Ex ia IIC T4...T6 Ga
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection method IN
- Screw terminal blocks
- Connection method OUT
- Screw terminal blocks
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque
- 0.6 Nm
Dimensions
- Depth
- 69.1 mm
- Height
- 94.8 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Cut-off frequency fg (3 dB), sym. in 150 Ohm system
- typ. 2 MHz
- Cut-off frequency fg (3 dB), sym. in 50 Ohm system
- typ. 6 MHz
- IEC test classification
- C3
- D1
- C1
- C2
- Impulse durability (line-earth)
- D1 - 500 A
- C2 - 10 kV / 5 kA
- Impulse durability (line-line)
- C2 - 10 kV / 5 kA
- Input attenuation aE, sym.
- typ. 1 dB (≤ 1 MHz / 50 Ω)
- typ. 0.3 dB (≤ 200 kHz / 150 Ω)
- Maximum continuous voltage UC
- 30 V DC
- 21 V AC
- Max. required back-up fuse
- 250 mA
- Nominal discharge current In (8/20) µs (line-earth)
- 5 kA
- Nominal discharge current In (8/20) µs (line-line)
- 5 kA
- Nominal pulse current Ian (10/1000) µs (line-earth)
- 100 A
- Nominal pulse current Ian (10/1000) µs (line-line)
- 100 A
- Nominal voltage UN
- 24 V DC
- Operating effective current IC at UC
- ≤ 5 µA
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 1.5 kV
- Output voltage limitation at 1 kV/µs (line-earth) static
- ≤ 1.5 kV
- Output voltage limitation at 1 kV/µs (line-line) spike
- ≤ 44 V
- Output voltage limitation at 1 kV/µs (line-line) static
- ≤ 44 V
- Pulse discharge current Iimp (10/350) µs (line-earth)
- 500 A
- Rated current
- 250 mA (40 °C)
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-earth)
- ≤ 110 V
- Residual voltage at In (line-line)
- ≤ 40 V
- Resistance per path
- 4.7 Ω ±20 %
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 1 ns
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 10 kA
- Voltage protection level Up (line-earth)
- ≤ 1.5 kV (C2 - 10 kV / 5 kA)
- Voltage protection level Up (line-line)
- ≤ 70 V (C2 - 10 kV / 5 kA)
Standards and Regulations
- Standards/specifications
- EN 60079-0 2012
- EN 60079-26 2007
- IEC 60079-0 2011
- IEC 60079-26 2006
- EN 60079-11 2012
- IEC 60079-11 2011
- EN 61643-21 2001 + A1:2009 + A2:2013
