Description

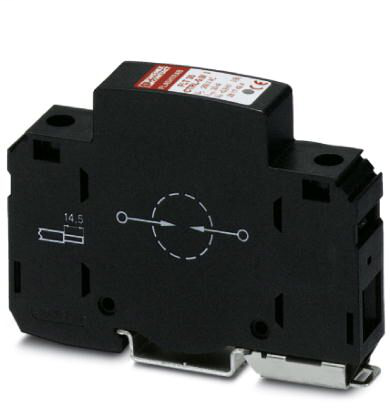

Type 1/Class I/B arrester (lightning current arrester) with encapsulated arc chopping spark gap and ignition electronics with control lamp, single-channel. Voltage protection level: 4 kV. Housing width: 17.5 mm (1 HP)Combination type 1/2 protective device - FLT 35 CTRL-4.0/I - 2801636
Phoenix Contact 2801636 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- 100 % lightning impulse sparkover voltage (1.2/50) µs ≤ 1.5 kV
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 85 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20 (only when all terminal points are used)
- Permissible humidity (operation)
- 5 % - 95 %
Connection data
- Conductor cross section AWG
- 6 - 2
- Conductor cross section flexible
- 2.5 mm² - 25 mm²
- Conductor cross section solid
- 2.5 mm² - 35 mm²
- Connection method
- Screw terminal blocks
- Screw thread
- M5
- Stripping length
- 14.5 mm
- Tightening torque
- 4.5 Nm
Dimensions
- Depth
- 66.2 mm
- Height
- 88.6 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.6 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Follow current interrupt rating Ifi (L-PEN)
- 3 kA
- Impulse discharge current (10/350) µs (L-PEN), charge
- 17.5 As
- Impulse discharge current (10/350) µs (L-PEN), peak current value Iimp
- 35 kA
- Impulse discharge current (10/350) µs (L-PEN), specific energy
- 306 J/Ω
- Max. backup fuse with branch wiring
- 400 A AC (gG)
- Max. backup fuse with V-type through wiring
- 80 A AC (gG)
- Maximum continuous operating voltage UC (L-PEN)
- 260 V AC
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 230/400 V AC (TT)
- 230/400 V AC (TN)
- Rated load current IL
- 80 A
- Residual current IPE
- ≤ 2.5 mA
- Response time tA (L-PEN)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 3 kA
- Standby power consumption PC
- ≤ 650 mVA
- TOV behavior at UT (L-PEN)
- 440 V AC (5 s / withstand mode)
- 440 V AC (120 min / withstand mode)
- Voltage protection level Up (L-PEN)
- ≤ 4 kV
Standards and Regulations
- Standards/regulations
- EN 61643-11 2012
- IEC 61643-11 2011
