Description

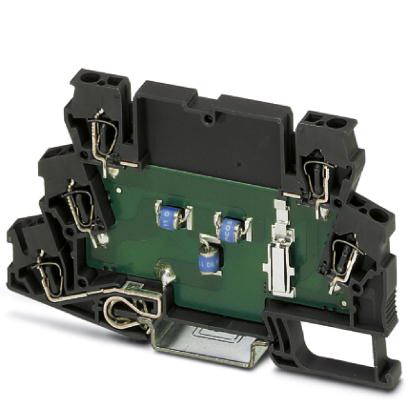

Double-level modular terminal block with two-stage surge protection for one two-wire impedance-sensitive signal circuit, separate ground connection, nominal voltage: 24 V DC.Surge protection device - TT-ST-2-PE/S2-24DC - 2801458
Phoenix Contact 2801458 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Spring-cage connection
- Connection method IN
- Spring-cage
- Connection method OUT
- Spring-cage
Connection, equipotential bonding
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 4 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Spring-cage connection
Dimensions
- Depth
- 63.5 mm (incl. DIN rail 7.5 mm)
- Height
- 100 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Capacity (line-line)
- ≤ 2 nF
- Cut-off frequency fg (3 dB), sym. in 150 Ohm system
- typ. 1 MHz
- Cut-off frequency fg (3 dB), sym. in 50 Ohm system
- typ. 3.3 MHz
- IEC test classification
- C2
- C3
- C1
- D1
- Impulse durability (line-earth)
- C1 - 1 kV / 500 A
- C2 - 10 kV / 5 kA
- D1 - 500 A
- C3 - 50 A
- Impulse durability (line-line)
- C3 - 25 A
- C1 - 0.6 kV / 300 A
- Input attenuation aE, sym.
- typ. 0.3 dB (330 kHz/150 Ω)
- typ. 0.3 dB (1.1 kHz / 50 Ω)
- Maximum continuous voltage UC
- 21 V AC
- 30 V DC
- Max. required back-up fuse
- 6.3 A (T/IEC 60127-2/3)
- Nominal discharge current In (8/20) µs (line-earth)
- 5 kA
- Nominal discharge current In (8/20) µs (line-line)
- 300 A
- Nominal pulse current Ian (10/1000) µs (line-earth)
- 50 A
- Nominal pulse current Ian (10/1000) µs (line-line)
- 25 A
- Nominal voltage UN
- 24 V DC
- Operating effective current IC at UC
- ≤ 1 µA
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 800 V
- Output voltage limitation at 1 kV/µs (line-line) spike
- ≤ 45 V
- Output voltage limitation at (8/20) µs (line-earth)
- ≤ 1.25 kV (at 5 kA)
- ≤ 750 V (at 500 A)
- Output voltage limitation at (8/20) µs (line-line)
- ≤ 50 V (at 300 A)
- Overload failure mode (line-line)
- Mode 2
- Pulse discharge current Iimp (10/350) µs
- 500 A (per path)
- Pulse reset time (line-earth)
- ≤ 700 ms, at Uc and 10 A
- Rated current
- 6 A (40 °C)
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-earth)
- ≤ 1.25 kV (at 5 kA)
- ≤ 750 V (at 500 A)
- Residual voltage at In (line-line)
- ≤ 50 V (at 300 A)
- Residual voltage with Ian (10/1000) µs (line-earth)
- ≤ 1.1 kV (at 50 A)
- Residual voltage with Ian (10/1000) µs (line-line)
- ≤ 45 V (at 25 A)
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 1 ns
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 5 kA
- VDE requirement class
- C1
- C2
- D1
- C3
- Voltage protection level Up (line-earth)
- ≤ 1.25 kV (C2 - 10 kV / 5 kA)
- ≤ 1.1 kV (C3 - 50 A)
- ≤ 750 V (C1 - 1 kV/500 A)
- ≤ 800 V (1 kV/μs)
- Voltage protection level Up (line-line)
- ≤ 50 V (C1 - 0,6 kV / 300 A)
- ≤ 45 V (C3 - 25 A)
- ≤ 45 V (1 kV/μs)
Standards and Regulations
- Standards/specifications
- EN 61643-21/A1 2009
- IEC 61643-21/A1 2008
