Phoenix Contact 2801249
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

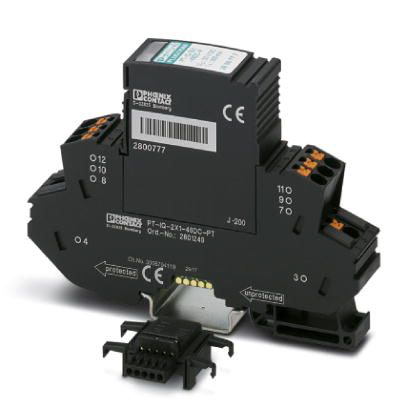

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for two signal wires with common reference potential.Surge protection device 2801249
Phoenix Contact 2801249 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector.
Ambient conditions
- Altitude
- ≤ 4000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Push-in connection
- Stripping length
- 10 mm
Connection, equipotential bonding
- Connection method
- DIN rail NS35
Dimensions
- Depth
- 77.5 mm (incl. DIN rail 7.5 mm)
- Height
- 109.3 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.7 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Capacity (line-signalground)
- typ. 1.5 nF
- Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system
- typ. 1.9 MHz
- IEC test classification
- C2
- C1
- D1
- C3
- Impulse durability (line-earth)
- D1 - 2.5 kA
- C3 - 25 A
- C1 - 1 kV/500 A
- C2 - 10 kA
- C2 - 10 kV/5 kA
- Input attenuation aE, asym.
- typ. 0.3 dB (≤ 530 kHz / 150 Ω)
- Maximum continuous voltage UC
- 37 V AC
- 53 V DC
- Max. required back-up fuse
- 315 mA (FF)
- Nominal discharge current In (8/20) µs (line-earth)
- 10 kA
- Nominal voltage UN
- 48 V DC
- Operating effective current IC at UC
- ≤ 6 µA (per path)
- Pulse discharge current Iimp (10/350) µs (line-earth)
- 2.5 kA
- Pulse reset time (line-earth)
- ≤ 1500 ms
- Rated current
- 300 mA
- Residual current IPE
- ≤ 6 µA (per path)
- Resistance in series
- 1.2 Ω ±5 %
- Response time tA (line-earth)
- ≤ 1 ns
- Surge protection fault message
- Optical, multi-stage
- Total discharge current Itotal (8/20) µs
- 20 kA
- Voltage protection level Up (line-earth)
- ≤ 105 V (C1 - 1 kV/500 A)
- ≤ 90 V (C3 - 25 A)
- ≤ 160 V (C2 - 10 kV / 5 kA)
Remote indication contact
- Switching function
- via DIN rail connector
Standards and Regulations
- Standards/specifications
- EN 61643-21 2001 + A1:2009 + A2:2013
- EN 61000-6-3 2007 + A1:2011
- EN 61000-6-2 2005
- IEC 61643-21 2000 + A1:2008 + A2:2012
