Description

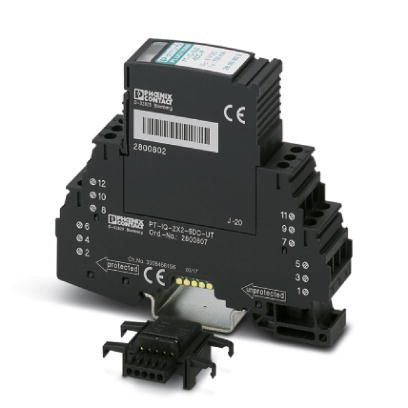

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for two 2-wire floating signal circuits.Surge protection device 2800807
Phoenix Contact 2800807 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector.
Ambient conditions
- Altitude
- ≤ 4000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque
- 0.5 Nm
Connection, equipotential bonding
- Connection method
- DIN rail NS35
Dimensions
- Depth
- 77.5 mm (incl. DIN rail 7.5 mm)
- Height
- 91.1 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.7 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Capacity (line-line)
- typ. 7.5 nF
- Cut-off frequency fg (3 dB), sym. in 150 Ohm system
- typ. 300 kHz
- IEC test classification
- C2
- D1
- C1
- C3
- Impulse durability (line-earth)
- C3 - 100 A
- C1 - 1 kV/500 A
- C2 - 10 kV/5 kA
- C2 - 10 kA
- D1 - 2.5 kA
- Impulse durability (line-line)
- C2 - 10 kV/5 kA
- C2 - 10 kA
- C1 - 1 kV/500 A
- C3 - 50 A
- Input attenuation aE, sym.
- typ. 0.3 dB (≤ 40 kHz/150 Ω)
- Maximum continuous voltage UC
- 6 V DC
- 4 V AC
- Max. required back-up fuse
- 800 mA (FF)
- Nominal discharge current In (8/20) µs (line-earth)
- 10 kA
- Nominal discharge current In (8/20) µs (line-line)
- 10 kA
- Nominal voltage UN
- 5 V DC
- Operating effective current IC at UC
- ≤ 2 mA (in the signal circuit)
- Pulse discharge current Iimp (10/350) µs (line-earth)
- 2.5 kA
- Pulse reset time (line-earth)
- ≤ 10 ms
- Pulse reset time (line-line)
- ≤ 10 ms
- Rated current
- 700 mA (50 °C)
- Residual current IPE
- ≤ 2 µA (per signal circuit)
- Resistance in series
- 1.2 Ω ±5 %
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 1 ns
- Surge protection fault message
- Optical, multi-stage
- Total discharge current Itotal (8/20) µs
- 20 kA
- Voltage protection level Up (line-earth)
- ≤ 600 V (C1 - 1 kV/500 A)
- ≤ 800 V (C3 - 100 A)
- ≤ 700 V (C3 - 25 A)
- ≤ 750 V (C2 - 10 kV / 5 kA)
- ≤ 800 V (C2 - 10 kA)
- Voltage protection level Up (line-line)
- ≤ 140 V (C2 - 10 kA)
- ≤ 85 V (C1 - 1 kV/500 A)
- ≤ 110 V (C2 - 10 kV / 5 kA)
- ≤ 25 V (C3 - 25 A)
- ≤ 25 V (C3 - 50 A)
- Voltage protection level Up static (line-line)
- ≤ 30 V (C2 - 10 kA)
- ≤ 70 V (C2 - 10 kV / 5 kA)
- ≤ 26 V (C1 - 1 kV/500 A)
Standards and Regulations
- Standards/specifications
- EN 61643-21 2001 + A1:2009
- EN 61000-6-3 2007 + A1:2011
- IEC 61643-21 2000 + A1:2008, modified
- EN 61000-6-2 2005
