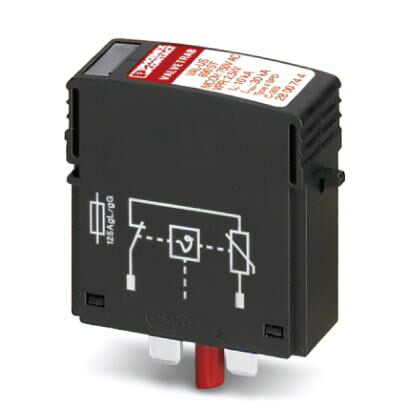

Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning. Design: 690 V ACType 2 surge protection plug - VAL-US 690 ST - 2800744
Phoenix Contact 2800744 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- Usable in all low-voltage systems between L-N or L-PEN. Only usable in IT Systems between L-PE, if the exposed-conductive-parts (bodies) of the equipment of the low-voltage installation is connected to the earthing arrangement of the transformer substation. (interconnected earthing arrangement of the HV-transformer substation with the bodies of the LV-installation. RE = RA accordance to IEC 60364-4-442 / VDE 0100-442 Fig. 44D / Example a)
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 5g (10 - 500 Hz / 2.5 h / X, Y, Z)
Connection data
- Connection method
- VALVETRAB plug-in system
Dimensions
- Depth
- 55.3 mm
- Height
- 52.4 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.5 mm
Protective circuit
- Max. backup fuse with branch wiring
- 100 A (gG)
- Maximum continuous voltage UC
- 760 V AC
- Maximum discharge current Imax (8/20) µs
- 30 kA
- Nominal discharge current In (8/20) µs
- 15 kA
- Nominal frequency fN
- 60 Hz (50 Hz)
- Nominal voltage UN
- 554/960 V AC (TN)
- 690 V AC (IT)
- Residual current IPE
- ≤ 0.5 mA
- Residual voltage Ures
- ≤ 2.3 kV (at 3 kA)
- ≤ 2.9 kV (at In)
- ≤ 2.7 kV (at 10 kA)
- ≤ 2.5 kV (at 5 kA)
- Response time tA
- ≤ 25 ns
- Short-circuit current rating ISCCR
- 25 kA
- Standby power consumption PC
- ≤ 400 mVA
- TOV behavior at UT
- 1056 V AC (120 min / safe failure mode)
- 1000 V AC (5 s / withstand mode)
- Voltage protection level Up
- ≤ 2.9 kV
Standards and Regulations
- Standards/regulations
- IEC 61643-11 2011
- EN 61643-11 2012
UL specifications
- Maximum continuous operating voltage MCOV (L-N)
- 750 V AC
- Measured limiting voltage MLV (L-N)
- 2700 V
- Mode of protection
- L-N
- Nominal discharge current In (L-N)
- 10 kA
- Nominal frequency
- 50/60 Hz
- Nom. voltage
- 690 V AC
- Power distribution system
- Single phase
- SPD Type
- 4CA
