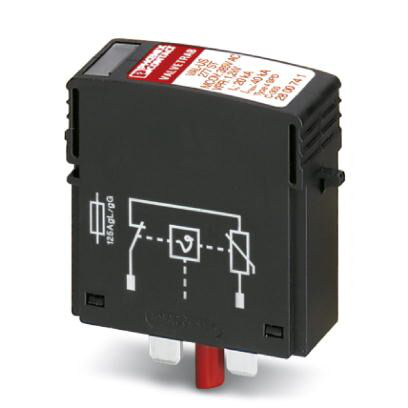

Phoenix Contact 2800741
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning. Design: 277 V ACType 2 surge protection plug - VAL-US 277 ST - 2800741
Phoenix Contact 2800741 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 5g (10 - 500 Hz / 2.5 h / X, Y, Z)
Dimensions
- Depth
- 55.3 mm
- Height
- 52.4 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.5 mm
Protective circuit
- Max. backup fuse with branch wiring
- 125 A (gG)
- Maximum continuous voltage UC
- 385 V AC
- Maximum discharge current Imax (8/20) µs
- 40 kA
- Nominal discharge current In (8/20) µs
- 20 kA
- Nominal frequency fN
- 60 Hz (50 Hz)
- Nominal voltage UN
- 240/415 V AC (TN)
- 240/415 V AC (TT)
- Residual current IPE
- ≤ 0.45 mA
- Residual voltage Ures
- ≤ 1.3 kV (at 3 kA)
- ≤ 1.6 kV (at 10 kA)
- ≤ 1.8 kV (at In)
- ≤ 1.4 kV (at 5 kA)
- Response time tA
- ≤ 25 ns
- Short-circuit current rating ISCCR
- 25 kA
- Standby power consumption PC
- ≤ 175 mVA
- TOV behavior at UT
- 415 V AC (5 s / withstand mode)
- 440 V AC (120 min / withstand mode)
- Voltage protection level Up
- ≤ 1.8 kV
Standards and Regulations
- Standards/regulations
- EN 61643-11 2012
- IEC 61643-11 2011
UL specifications
- Maximum continuous operating voltage MCOV (L-N)
- 385 V AC
- Measured limiting voltage MLV (L-N)
- 2200 V
- Mode of protection
- L-N
- Nominal discharge current In (L-N)
- 20 kA
- Nominal frequency
- 50/60 Hz
- Nom. voltage
- 277 V AC
- Power distribution system
- Single phase
- SPD Type
- 4CA
