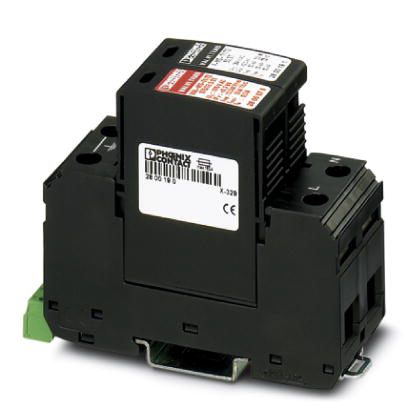

Phoenix Contact 2800674
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Universal varistor-based plug-in lightning/surge arrester for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact.Lightning/surge arrester type 1/2 2800674
Phoenix Contact 2800674 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- Nominal voltage UN = 120 V AC/240 V AC split-phase (separate GND)
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20 (only when all terminal points are used)
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 7.5g (10 - 500 Hz / 2.5 h / X, Y, Z)
Connection data
- Conductor cross section AWG
- 15 - 2
- Conductor cross section flexible
- 1.5 mm² - 16 mm²
- 1.5 mm² - 25 mm²
- Conductor cross section solid
- 1.5 mm² - 35 mm²
- Connection method
- Fork-type cable lug
- Screw connection
- Screw thread
- M5
- Stripping length
- 16 mm
- Tightening torque
- 3 Nm (1,5 mm² - 16 mm²)
- 4.5 Nm (25 mm² - 35 mm²)
Dimensions
- Depth
- 77.5 mm (incl. DIN rail 7.5 mm)
- Height
- 96.8 mm
- Horizontal pitch
- 2 Div.
- Width
- 35.6 mm
Indicator/remote signaling
- Conductor cross section AWG
- 28 - 16
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 1.5 mm²
- Connection method
- Plug-in/screw connection via COMBICON
- Operating current
- 1 A DC
- 5 mA AC - 1.5 A AC
- Operating voltage
- 5 V AC - 250 V AC
- 30 V DC
- Screw thread
- M2
- Stripping length
- 7 mm
- Switching function
- PDT contact
- Tightening torque
- 0.25 Nm
Protective circuit
- Follow current interrupt rating Ifi (N-PE)
- 100 A
- Impulse discharge current (10/350) µs (L-N), charge
- 6.25 As
- Impulse discharge current (10/350) µs (L-N), peak current value Iimp
- 12.5 kA
- Impulse discharge current (10/350) µs (L-N), specific energy
- 39 kJ/Ω
- Impulse discharge current (10/350) µs (L-PE), charge
- 6.25 As
- Impulse discharge current (10/350) µs (L-PE), peak current value Iimp
- 12.5 kA
- Impulse discharge current (10/350) µs (L-PE), specific energy
- 39 kJ/Ω
- Impulse discharge current (10/350) µs (N-PE), charge
- 25 As
- Impulse discharge current (10/350) µs (N-PE), peak current value Iimp
- 50 kA
- Impulse discharge current (10/350) µs (N-PE), specific energy
- 625 kJ/Ω
- Max. backup fuse with branch wiring
- 160 A (gG)
- Max. backup fuse with V-type through wiring
- 80 A (gG - 16 mm²)
- Maximum continuous operating voltage UC (L-N)
- 175 V AC
- Maximum continuous operating voltage UC (L-PE)
- 175 V AC
- Maximum continuous voltage UC (N-PE)
- 264 V AC
- Maximum discharge current Imax (8/20) µs
- 50 kA
- Nominal discharge current In (8/20) µs (L-N)
- 12.5 kA
- Nominal discharge current In (8/20) µs (L-PE)
- 12.5 kA
- Nominal discharge current In (8/20) µs (N-PE)
- 50 kA
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 120 V AC (TT)
- 120 V AC (TN-S)
- Rated load current IL
- 80 A
- Residual current IPE
- ≤ 5 µA
- Residual voltage Ures (L-N)
- ≤ 0.5 kV (at 3 kA)
- ≤ 0.8 kV (at In)
- ≤ 0.6 kV (at 5 kA)
- ≤ 0.65 kV (at 10 kA)
- Residual voltage Ures (L-PE)
- ≤ 1.3 kV (at 3 kA)
- ≤ 1.4 kV (at 5 kA)
- ≤ 1.5 kV (at 10 kA)
- ≤ 2 kV (at In)
- Residual voltage Ures (N-PE)
- ≤ 0.4 kV (at 3 kA)
- ≤ 0.5 kV (at 5 kA)
- ≤ 0.5 kV (at 10 kA)
- ≤ 0.6 kV (at In)
- Response time tA (L-N)
- ≤ 25 ns
- Response time tA (L-PE)
- ≤ 100 ns
- Response time tA (N-PE)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 25 kA
- Standby power consumption PC
- ≤ 140 mVA
- Total discharge current Itotal (10/350) µs
- 25 kA
- Total discharge current Itotal (8/20) µs
- 50 kA
- TOV behavior at UT (L-N)
- 229 V AC (120 min / withstand mode)
- 208 V AC (5 s / withstand mode)
- TOV behavior at UT (N-PE)
- 1200 V AC (200 ms / withstand mode)
- Voltage protection level Up (L-N)
- ≤ 0.8 kV
- Voltage protection level Up (L-PE)
- ≤ 2 kV
- Voltage protection level Up (N-PE)
- ≤ 1.7 kV
Standards and Regulations
- Standards/regulations
- IEC 61643-11 2011
- EN 61643-11 2012
UL connection data
- Conductor cross section AWG
- 10 - 2
- Tightening torque
- 30 lbf-in.
UL indicator/remote signaling
- Conductor cross section AWG
- 30 - 14
- Operating current
- 1 A AC
- Operating voltage
- 125 V AC
- Tightening torque
- 4 lbf-in.
UL specifications
- Maximum continuous operating voltage MCOV (L-G)
- 175 V AC
- Maximum continuous operating voltage MCOV (L-N)
- 175 V AC
- Maximum continuous operating voltage MCOV (N-G)
- 264 V AC
- Measured limiting voltage MLV (L-G)
- 3160 V
- Measured limiting voltage MLV (L-N)
- 2200 V
- Measured limiting voltage MLV (N-G)
- 2600 V
- Mode of protection
- L-N
- L-G
- N-G
- Nominal discharge current In (L-G)
- 20 kA
- Nominal discharge current In (L-N)
- 20 kA
- Nominal discharge current In (N-G)
- 20 kA
- Nominal frequency
- 50/60 Hz
- Nom. voltage
- 120 V AC
- Power distribution system
- Single phase
- SPD Type
- 4CA
