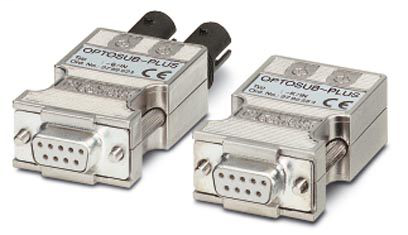

Phoenix Contact 2799584
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 2799584 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 55 °C
Dimensions
- Depth
- 31.3 mm
- Height
- 57 mm
- Width
- 16.3 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Optical interface FO
- Connection method
- F-SMA
- Minimum receiver sensitivity
- -26 dBm
- Transmission length incl. 3 dB system reserve
- 100 m (F-S 200/230 10 dB/km, OPTOSUB/FO bus terminal module)
- 50 m (With F-P 980/1000 230 dB/km with quick mounting connector)
- 300 m (with F-S 200/230 10 dB/km)
- Transmission medium
- PCF fiber
- Polymer fiber
- Transmission power
- 354.81 µW (-4.5 dBm at 980/1000 µm)
- 11.22 µW (-19.5 dBm at 200/230 µm)
- Wavelength
- 660 nm
Power supply
- Nominal supply voltage
- none, supply from data channel
- Typical current consumption
- typ. 30 mA
Serial interface
- Connection method
- D-SUB-9 female connector
- Interface 1
- RS-485 interface INTERBUS in acc. with DIN 50254
- Serial transmission speed
- 500 kbps
- Transmission medium
- Copper
