Description

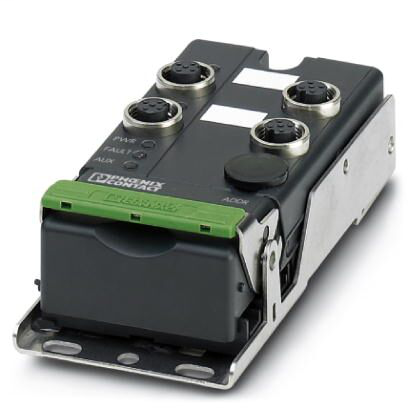

AS-i digital output module, single slave, 4 digital outputs, 24 V DC, IP67 protectionDistributed I/O device - FLX ASI DO 4 M12-2A - 2773458
Phoenix Contact 2773458 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
AS-Interface
- AS-i profile
- S-8.1
- AS-i specification
- 2.0
- ID code (dec.)
- 1
- ID code (hex)
- 1
- IO code
- 8
- Required master specification
- >= 2.0
- Slave type
- Single slave
Digital outputs
- Connection method
- M12 connector
- Connection technology
- 2-wire
- Maximum output current per channel
- 2 A
- Maximum output current per module / terminal block
- 4 A
- Number of outputs
- 4
- Output name
- Digital outputs
Dimensions
- Depth
- 35 mm
- Drill hole spacing
- 108 mm
- Height
- 118 mm
- Width
- 58 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- Flat-ribbon cable penetration technique
- Designation
- AS-Interface
- Designation connection point
- AS-i
- Number of positions
- 4
- Transmission speed
- 167 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
