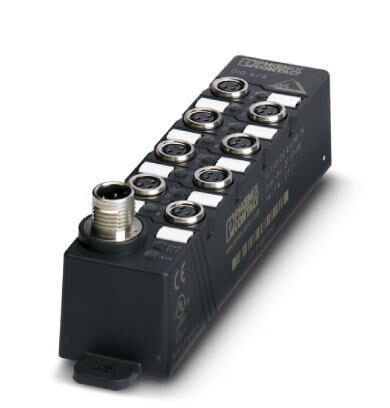

Phoenix Contact 2773416
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AS-i digital input/output module, 4 digital inputs, 24 V DC, 2, 3-wire connection method, 4 digital outputs, 24 V DC, 0.5 A, 2-wire connection method, IP67 protectionDistributed I/O device - FLX ASI DIO 4/4 M8-1A - 2773416
Phoenix Contact 2773416 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
AS-Interface
- AS-i profile
- S-7.0
- AS-i specification
- 2.0
- ID code (dec.)
- 0
- ID code (hex)
- 0
- IO code
- 7
- Required master specification
- >= 2.0
- Slave type
- Single slave
Digital inputs
- Connection method
- M8 connector
- Connection technology
- 2, 3-wire
- Description of the input
- IEC 61131-2 Type 2
- Input name
- Digital inputs
- Number of inputs
- 4
Digital outputs
- Connection method
- M8 connector
- Connection technology
- 2-wire
- Maximum output current per channel
- 1 A
- Maximum output current per module / terminal block
- 4 A
- Number of outputs
- 4
- Output name
- Digital outputs
Dimensions
- Depth
- 143 mm
- Drill hole spacing
- 133 mm
- Height
- 26 mm
- Width
- 30 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- M12 connector, (A-coded)
- Designation
- AS-Interface
- Designation connection point
- AS-i
- Number of positions
- 2
- Transmission speed
- 167 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
