Phoenix Contact 2773403
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

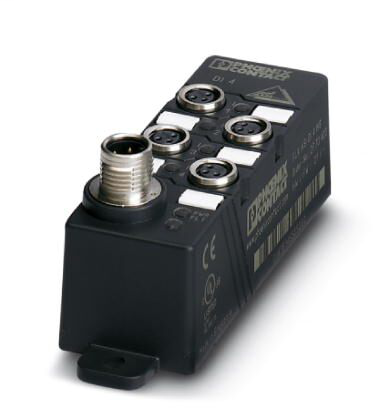

AS-i digital input module, single slave, 4 digital inputs, 24 V DC, 2, 3 and 4-conductor connection method, IP67 protectionDistributed I/O device - FLX ASI DI 4 M8 - 2773403
Phoenix Contact 2773403 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
AS-Interface
- AS-i profile
- S-0.0
- AS-i specification
- 2.0
- ID code (dec.)
- 0
- ID code (hex)
- 0
- IO code
- 0
- Required master specification
- >= 2.0
- Slave type
- Single slave
Digital inputs
- Connection method
- M8 connector
- Connection technology
- 2, 3-wire
- Description of the input
- IEC 61131-2 Type 2
- Input name
- Digital inputs
- Number of inputs
- 4
Dimensions
- Depth
- 103 mm
- Drill hole spacing
- 93 mm
- Height
- 26 mm
- Width
- 30 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- M12 connector, (A-coded)
- Designation
- AS-Interface
- Designation connection point
- AS-i
- Number of positions
- 2
- Transmission speed
- 167 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
