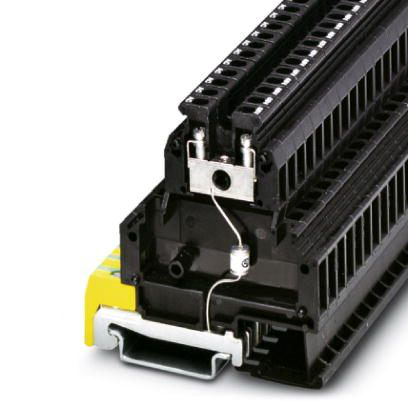

Phoenix Contact 2765602
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modular terminal block with gas-filled surge arrester as coarse protection between clamping connector and DIN rail, separate PE connection, nominal voltage: 110 V AC, mounting on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mmSurge protection device 2765602
Phoenix Contact 2765602 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C
- Degree of protection
- IP20 (with end cover)
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 4 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection method IN
- Screw terminal blocks
- Connection method OUT
- Screw terminal blocks
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque
- 0.8 Nm
Dimensions
- Depth
- 69.5 mm
- Height
- 66.5 mm
- Width
- 6.2 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
- 4-Nonylphenol, ethoxylated
Protective circuit
- Alternating current carrying capacity (line-earth)
- 2.5 A - 1 s
- Capacity (line-earth)
- typ. 1 pF
- IEC test classification
- C2
- C1
- D1
- C3
- Max. discharge current Imax (8/20) µs maximum (line-earth)
- 5 kA
- Maximum continuous voltage UC
- 30 V DC
- 110 V AC
- Max. required back-up fuse
- 2 A AC (F)
- 315 mA DC (F)
- Nominal discharge current In (8/20) µs (line-earth)
- 5 kA
- Nominal voltage UN
- 110 V AC
- 30 V DC
- Operating effective current IC at UC
- ≤ 2 µA
- Output voltage limitation at 1 kV/µs (line-earth) spike
- ≤ 650 V
- Output voltage limitation at 1 kV/µs (line-earth) static
- ≤ 650 V
- Rated current
- 300 mA DC
- 2 A AC
- Residual current IPE
- ≤ 1.5 µA
- Response time tA (line-earth)
- ≤ 100 ns
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 5 kA
Standards and Regulations
- Standards/specifications
- EN 61643-21 2001
- IEC 61643-21 2000
