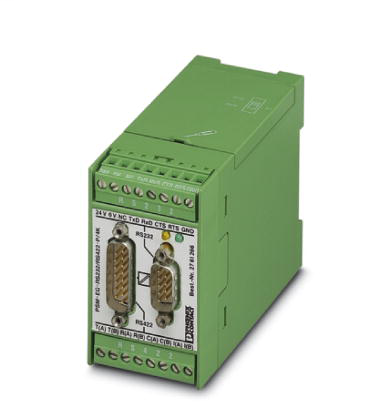

Phoenix Contact 2761266
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface converter, for converting RS-232 (V.24) to RS-422 (V.11), with electrical isolation, 4 channels, rail-mountableInterface converter 2761266
Phoenix Contact 2761266 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Noise immunity
- EN 50 082-2
Dimensions
- Depth
- 110 mm
- Height
- 75 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Supply voltage range
- 19.2 V DC - 28.8 V DC
- Typical current consumption
- 130 mA (24 V DC)
Serial interface
- Conductor cross section AWG max.
- 13
- 13
- Conductor cross section AWG min.
- 24
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- 0.2 mm²
- Connection method
- Pluggable screw connection
- Pluggable screw connection
- D-SUB-15 male connector
- D-SUB 9 plug
- Interface 1
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- Interface 2
- RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
- Serial transmission speed
- 64 kbps
- 64 kbps
- Termination resistor
- 150 Ω
- 510 Ω (Can be connected)
- 510 Ω
- Transmission length
- 1200 m (twisted pair)
- 15 m (twisted pair)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise emission
- EN 50 081-1
- Noise immunity
- EN 50 082-2
- UL, USA/Canada
- cUL 508 Recognized
