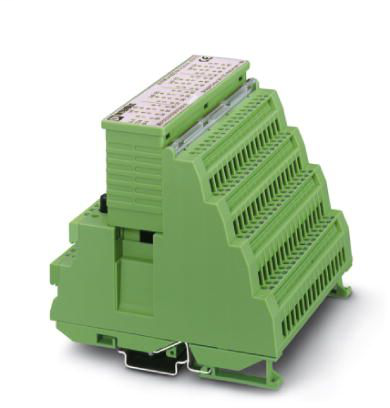

Phoenix Contact 2752482

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 55 °C
• Ambient temperature (storage/transport)
  • -25 °C - 70 °C
• Degree of protection
  • IP20

Dimensions

• Height
  • 117 mm
• Length
  • 116 mm
• Width
  • 118 mm

Electrical isolation

• Test section
  • Output groups/Ground conductor 500 V AC 50 Hz 1 min.
  • Output group/Output group 500 V AC 50 Hz 1 min.
  • Bus/Output groups 500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values
• REACh SVHC
  • Lead 7439-92-1

Interfaces

• Connection method
  • INTERBUS-ST local bus
• Interface
  • ST local bus
• Transmission speed
  • 500 kbps

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Outputs

• Connection technology
  • 2-wire
• Maximum output current per channel
  • 500 mA
• Maximum output current per group
  • 4 A
• Maximum output current per module / terminal block
  • 16 A
• Minimum output current per channel
  • 1 mA
• Nominal load, inductive
  • 12 VA (0.5 Hz at 1.2 H/48 Ω)
• Nominal load, lamp
  • 12 W
• Nominal load, ohmic
  • 12 W (max. 300 Hz/48 Ω)
• Number of output groups
  • 4
• Number of outputs
  • 32
• Output voltage
  • US - 1 V
• Protective circuit
  • Short-circuit protection of outputs Electronic per channel

Power supply

• Communications power U_L
  • 9 V DC (from the ST local bus)
• I/O voltage
  • 24 V DC
• I/O voltage range
  • 20 V DC - 30 V DC
• Residual ripple
  • ± 1.2 VPP
• Typical current consumption
  • 100 mA (from the ST local bus)

Standards and Regulations

• Connection in acc. with standard
  • CUL
