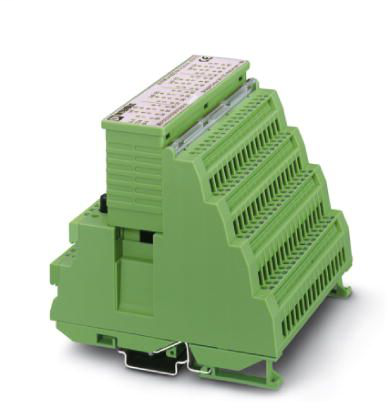

Phoenix Contact 2750824
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
INTERBUS-ST digital output module, 32 outputs, 24 V DC, 500 mA, 2-wire connection method, IP20 protection, consisting of: Terminal part with screw connection and module electronicsI/O module 2750824
Phoenix Contact 2750824 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 86 kPa - 108 kPa (1500 m above sea level)
- Air pressure (storage/transport)
- 86 kPa - 108 kPa (1500 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 75 % (non-condensing)
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Digital outputs
- Connection method
- Screw connection
- Connection technology
- 2-wire
- Maximum output current per channel
- 500 mA
- Maximum output current per group
- 16 A
- Maximum output current per module / terminal block
- 16 A
- Nominal load, inductive
- 12 VA
- Nominal load, lamp
- 4 W
- Nominal load, ohmic
- 12 W
- Number of outputs
- 32
- Output name
- Digital outputs
- Type of protection
- Current limit for 8 channels
- Short-circuit protection
Dimensions
- Depth
- 116 mm
- Height
- 117 mm
- Width
- 118 mm
Electrical isolation
- Test section
- Supply voltage logic / I/O 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- ST local bus connector
- Designation
- ST local bus
- Transmission speed
- 500 kbps
Power supply for module electronics
- Current consumption
- 100 mA
- Ripple
- 3.6 Vpp within the allowable voltage range
- Supply voltage
- 24 V DC
- Supply voltage range
- 20 V DC - 30 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
