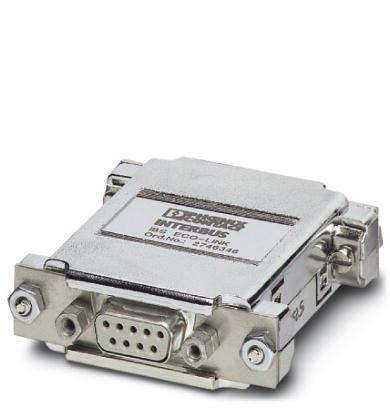

Phoenix Contact 2746346
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
INTERBUS Master Interface including: - Driver software for DOS and Windows - User documentation in German and English - Monitor programs - Cable for the power supplyTermination board 2746346
Phoenix Contact 2746346 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 860 hPa - 1080 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 860 hPa - 1080 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % (95 % infrequently, non-condensing)
- Permissible humidity (storage/transport)
- 5 % (95% infrequently, no condensation)
Control system
- Control system
- All computer systems with a serial interface
- Operating system
- Windows 95/98
- Windows 2000
- Windows XP
- Windows NT
- DOS
Data interfaces
- Connection method
- Socket driver, diagnostics LED
- Serial interface (V.24), data backup, parity (even)
- 9-pos. D-SUB socket
- Interface
- Parameterization/operation/diagnostics
- INTERBUS remote bus
- Control system
- Transmission speed
- 500 kbps / 2 Mbps2 Mbps (can be switched)
- max. 115,2 kBit/s
- User interface
- V.24, 1 start bit, 2 stop bits, 8 data bits, even parity, max. baud rate: 115.2 kbps
Dimensions
- Depth
- 65 mm
- Height
- 56 mm
- Width
- 18 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Fieldbus function
- Amount of process data
- 4096 Byte (256 words (4096 binary inputs/outputs))
- Number of devices with parameter channel
- 62
- Number of parameter data
- 62 Byte (in preparation)
- Number of supported devices
- 512 (254 of which)
- Protocol chip
- IBS-UART
Local diagnostics
- Optical representation
- Operating status LED (power supply, V.24 communication)
Mechanical design
- Weight
- 115 g
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Power dissipation
- max. 0.55 W
- Power supply connection
- 3-pos. circular connector, via external voltage supply
- Supply voltage
- 5 V DC 5 %
- Typical current consumption
- typ. 110 mA (all inputs static, outputs unused)
