Phoenix Contact 2737494
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

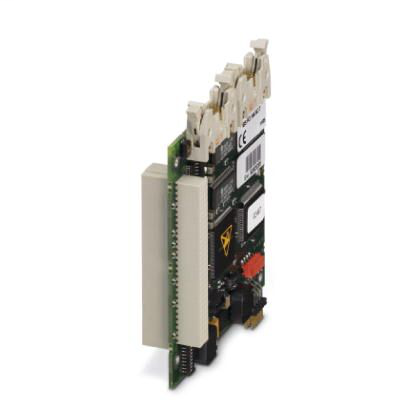

Termination board in PCI-104 format, connects an INTERBUS network to a control system with PCI-104 interface, without electrical isolationTermination board - IBS PCI 104 SC-T - 2737494
Phoenix Contact 2737494 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 860 hPa - 1080 hPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 660 hPa - 1080 hPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C (acc. to EN 60204-1)
- Ambient temperature (storage/transport)
- -25 °C - 75 °C (acc. to EN 60204-1)
- Degree of protection
- IP20
- Permissible humidity (operation)
- 75 % (on average, 85% infrequently, non-condensing)
- Shock
- 2g, criterion A acc. to IEC 60068-2-6
Control system
- Configuration tool
- CMD from version 4.62
- Control system
- IBM-compatible PCs with PCI-104 slot
- Diagnostics tool
- DIAG+ from version 1.0x
- Operating system
- Further types on request
- Windows XP
- Windows NT
- Venturcom RTX 5.x
- Windows 2000
Data interfaces
- Connection method
- 10-pos. DIL pin strip
- PCI-104 bus, 32 bits, 33 MHz, 5 V
- Interface
- Parameterization/operation/diagnostics
- Host system
- INTERBUS remote bus
- Interrupts
- 1 IRQ, PnP
- Number
- 1
- Transmission speed
- 500 kbps / 2 Mbps (can be switched)
- 500 kbps / 2 Mbps500 kbps 2 Mbps (can be switched)
Dimensions
- Height
- 96 mm
- Width
- 90 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldbus function
- Amount of process data
- max. 8192 Bit (INTERBUS)
- Number of devices with parameter channel
- max. 126
- Number of supported devices
- max. 512 (of which 254 are remote bus devices/bus segments)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Power dissipation
- max. 3.5 W
- Power supply connection
- Via PCI-104 bus
- Supply voltage
- 5 V DC
- Supply voltage range
- ± 5 % (including ripple)
- Typical current consumption
- 0.7 A
Software interfaces
- Application interface
- HFI
- DDI
- OPC
- Driver
- Windows 2000
- Further types on request
- Windows NT
- Windows XP
- Venturcom RTX 5.x
Software requirements
- Configuration tool
- CMD from version 4.62
- Diagnostics tool
- DIAG+ from version 1.0x
Standards and Regulations
- Connection in acc. with standard
- CUL
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Immunity to burst
- Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, Signal/data lines: 2 kV
- Immunity to conducted interference
- Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
- Immunity to EF
- Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
- Immunity to ESD
- Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
- Immunity to surge
- Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, Signal/data lines: 1 kV
- Interference emission
- Noise emission test as per EN 61000-6-4 Class A
- Shock
- 2g, criterion A acc. to IEC 60068-2-6
