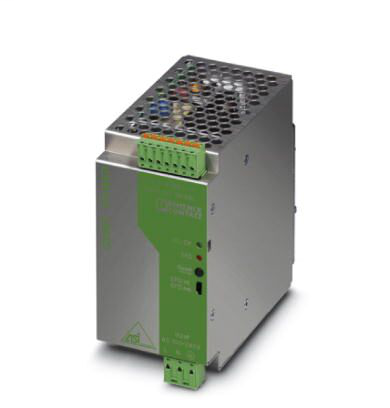

Phoenix Contact 2736699

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 70 °C (> 60 °C Derating: 2.5 %/K)
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Max. permissible relative humidity (operation)
  • 95 % (at 25 °C, non-condensing)

Connection data, input

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Pluggable spring-cage connection
• Screw thread
  • M3
• Stripping length
  • 10 mm

Connection data, output

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• Screw thread
  • M3

Dimensions

• Depth
  • 125 mm
• Depth with alternative assembly
  • 73 mm
• Height
  • 145 mm
• Height with alternative assembly
  • 145 mm
• Width
  • 70 mm
• Width with alternative assembly
  • 122 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• AC frequency range
  • 45 Hz - 65 Hz
• Current consumption
  • 1 A (230 V AC)
  • approx. 1.8 A (120 V AC)
• Frequency range DC
  • 0 Hz
• Input fuse
  • 5 A (slow-blow, internal)
• Inrush current
  • < 15 A (typical)
• Mains buffering time
  • > 100 ms (230 V AC)
  • > 60 ms (120 V AC)
• Nominal input voltage range
  • 100 V AC - 240 V AC
• Nominal power consumption
  • 144 W
• Recommended breaker for input protection
  • 6 A - 16 A (Characteristics B, C, D, K)

Output data

• Connection in parallel
  • No
• Connection in series
  • yes
• Maximum power dissipation in no-load condition
  • 4 W
• Nominal output current (IN)
  • 4.8 A
• Nominal output voltage
  • 30.1 V DC ±1.5 %
• Output power
  • 144 W
• Peak switching voltages nominal load
  • < 50 mVPP
• Power loss nominal load max.
  • 16 W
• Residual ripple
  • < 30 mVPP
• Typical response time
  • < 0.5 s

Standards and Regulations

• Comments
  • Criterion B
• Connection in acc. with standard
  • CUL
• Contact discharge
  • 4 kV (Test Level 2)
• Electromagnetic compatibility
  • Conformance with EMC Directive 2014/30/EU
• Frequency range
  • 1.4 GHz - 2 GHz
  • 80 MHz - 1 GHz
  • 0.15 MHz - 80 MHz
• Low Voltage Directive
  • Conformance with Low Voltage Directive 2014/35/EC
• Noise immunity
  • EN 61000-6-2
• Signal
  • 1 kV (Test Level 2 - asymmetrical)
• Standard - Electrical safety
  • EN 60950-1/VDE 0805 (SELV)
  • DIN VDE 0100-410
• Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations
  • EN 50178/VDE 0160 (PELV)
• Standard – Limitation of mains harmonic currents
  • EN 61000-3-2
• Standard - Safe isolation
  • DIN VDE 0100-410
  • DIN VDE 0106-1010
• Standard - Safety of transformers
  • EN 61558-2-17
• Standards/regulations
  • EN 61000-4-4
  • EN 61000-4-3
  • EN 61000-4-6
• Test field strength
  • 10 V/m
  • 3 V/m
• UL approvals
  • UL/C-UL Recognized UL 60950-1
  • UL/C-UL listed UL 508
• Voltage
  • 10 V (Test Level 3)
