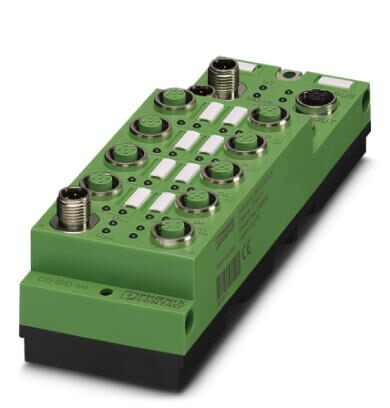

Phoenix Contact 2736482
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The stand-alone device for CANopen® has 8 digital inputs and 8 digital outputs each with a load capacity of 500 mA. The M12 connection is established using fast connection technology. The 24 V DC supply is protected against short circuit and overload.Distributed I/O device - FLS CO M12 DIO 8/8 M12 - 2736482
Phoenix Contact 2736482 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 106 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
- Permissible humidity (storage/transport)
- 95 %
Digital inputs
- Connection method
- M12 connector, double occupancy
- Connection technology
- 2, 3, 4-wire
- Description of the input
- IEC 61131-2 type 1
- Filter time
- 3 ms
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -30 V DC - 5 V DC
- Input voltage range "1" signal
- 13 V DC - 30 V DC
- Nominal input voltage UIN
- 24 V DC
- Number of inputs
- 8
- Protective circuit
- Reverse polarity protection
Digital outputs
- Connection method
- M12 connector, double occupancy
- Connection technology
- 2, 3-wire
- Maximum output current per channel
- 500 mA
- Number of outputs
- 8
- Output name
- Digital outputs
- Output voltage
- 24 V DC
- Protective circuit
- Short-circuit protection
Dimensions
- Depth
- 49.3 mm
- Drill hole spacing
- 168 mm
- Height
- 178 mm
- Width
- 60 mm
Electrical isolation
- Test section
- FE / Digital inputs (sensor supply) 500 V AC 50 Hz 1 min.
- 24 V supply (bus logics) / FE
- 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldline potentials
- Current consumption at UA11
- max. 4 A
- typ. 6 mA (plus actuator current)
- Current consumption at UA12
- max. 4 A
- typ. 6 mA (plus actuator current)
- Current consumption from UL
- typ. 60 mA
- max. 100 mA
- Current consumption from US
- typ. 10 mA (plus sensor current)
- max. 500 mA
- Power supply at UA11
- max. 4 A
- Power supply at UA12
- max. 4 A
- Power supply at UL
- max. 4 A
- Power supply at US
- max. 4 A
- Voltage supply UA11
- 24 V DC
- Voltage supply UA12
- 24 V DC
- Voltage supply UL
- 24 V DC
- Voltage supply US
- 24 V DC
Interfaces
- Address area assignment
- 1 - 126, adjustable
- Connection method
- 2 M12 connectors, A-coded
- Designation
- CANopen®
- Number of positions
- 5
- Transmission physics
- Copper cable with optional power supply in acc. with CAN standard
- Transmission speed
- 10, 20, 50, 125, 250, 500, 1000 kBit/s (Automatic baud rate detection)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply for module electronics
- Connection method
- M12 connector, (A-coded)
- Designation
- UL
- Supply voltage
- 24 V DC
- Supply voltage range
- 18 V DC - 30 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
