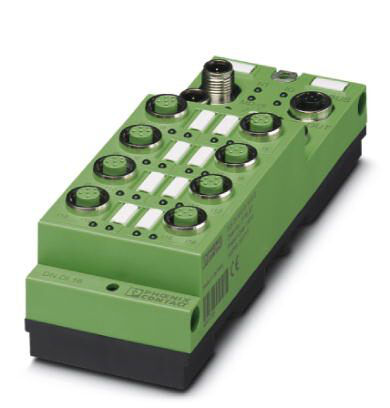

Phoenix Contact 2736327
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The stand-alone device for DeviceNet™ has 16 digital inputs. The M12 connection is established using fast connection technology. The 24 V DC supply is protected against short circuit and overload. The nominal current of the device is 1.2 A.Distributed I/O device - FLS DN M12 DI 16 M12 - 2736327
Phoenix Contact 2736327 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 106 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
- Permissible humidity (storage/transport)
- 95 %
Digital inputs
- Connection method
- M12 connector, double occupancy
- Connection technology
- 2, 3, 4-wire
- Description of the input
- IEC 61131-2 type 1
- Filter time
- 1 ms
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -30 V DC - 5 V DC
- Input voltage range "1" signal
- 13 V DC - 30 V DC
- Nominal input voltage UIN
- 24 V DC
- Number of inputs
- 16
- Protective circuit
- Reverse polarity protection
Dimensions
- Depth
- 44.5 mm
- Drill hole spacing
- 151 mm
- Height
- 161 mm
- Width
- 60 mm
Electrical isolation
- Test section
- To I/O 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Fieldline potentials
- Current consumption from UL
- max. 100 mA
- typ. 65 mA
- Current consumption from US
- max. 1.2 A
- typ. 8 mA (plus sensor current)
- Power supply at UL
- max. 4 A
- Power supply at US
- max. 4 A
- Voltage supply UL
- 24 V DC
- Voltage supply US
- 24 V DC
Interfaces
- Address area assignment
- 0 - 63, can be set
- Connection method
- 2 M12 connectors, A-coded
- Designation
- DeviceNet™
- Number of positions
- 5
- Transmission physics
- Copper cable in acc. with DeviceNet™ specification
- Transmission speed
- 125 kbps, 250 kbps, 500 kbps (Automatic baud rate detection)
Power supply for module electronics
- Connection method
- M12 connector, (A-coded)
- Designation
- UL
- Supply voltage
- 24 V DC
- Supply voltage range
- 12 V DC - 30 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Mechanical tests
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Load 30g, half sine wave, positive and negative per direction
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
