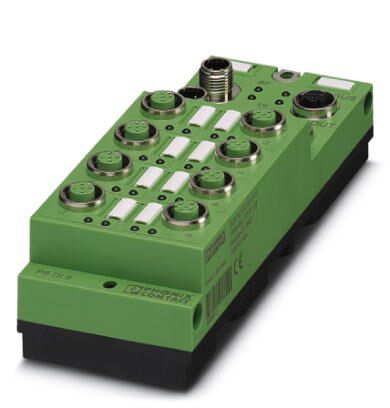

Phoenix Contact 2736123
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The stand-alone device for PROFIBUS has 8 digital inputs. The M12 connection is established using fast connection technology. The 24 V DC supply is protected against short circuit and overload. The nominal current of the device is 600 mA.Distributed I/O device - FLS PB M12 DI 8 M12 - 2736123
Phoenix Contact 2736123 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 106 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
- Permissible humidity (storage/transport)
- 95 %
Digital inputs
- Connection method
- M12 connector
- Connection technology
- 2, 3, 4-wire
- Description of the input
- IEC 61131-2 type 1
- Filter time
- 3 ms
- Input name
- Digital inputs
- Input voltage
- 24 V DC
- Input voltage range "0" signal
- -30 V DC - 5 V DC
- Input voltage range "1" signal
- 13 V DC - 30 V DC
- Nominal input voltage UIN
- 24 V DC
- Number of inputs
- 8
- Protective circuit
- Reverse polarity protection
Dimensions
- Depth
- 44.5 mm
- Drill hole spacing
- 151 mm
- Height
- 161 mm
- Width
- 60 mm
Electrical isolation
- Test section
- 24 V supply (bus logics) / Bus connection
- 24 V supply (bus logics) / FE 500 V AC 50 Hz 1 min.
- Bus connection / FE 500 V AC 50 Hz 1 min.
- Bus connection / Digital inputs (sensor supply) 500 V AC 50 Hz 1 min.
- FE / Digital inputs (sensor supply) 500 V AC 50 Hz 1 min.
- 24 V supply (bus logics) / Digital inputs (sensor supply) 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldline potentials
- Current consumption from UL
- max. 100 mA
- typ. 35 mA
- Current consumption from US
- typ. 5 mA (plus sensor current)
- max. 700 mA
- Power supply at UL
- max. 4 A
- Power supply at US
- max. 4 A
- Voltage supply UL
- 24 V DC
- Voltage supply US
- 24 V DC
Interfaces
- Address area assignment
- 1 - 99, can be set
- Connection method
- 2x M12 connectors, B-coded
- Designation
- PROFIBUS DP
- Designation connection point
- Copper cable
- Number of positions
- 5
- Transmission physics
- PROFIBUS-DP-compliant copper cable
- Transmission speed
- 9.6 kbps - 12 Mbps (Automatic baud rate detection)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply for module electronics
- Connection method
- M12 connector, (A-coded)
- Designation
- UL
- Supply voltage
- 24 V DC
- Supply voltage range
- 18 V DC - 30 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Mechanical tests
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Load 30g, half sine wave, positive and negative per direction
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g in each space direction
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
