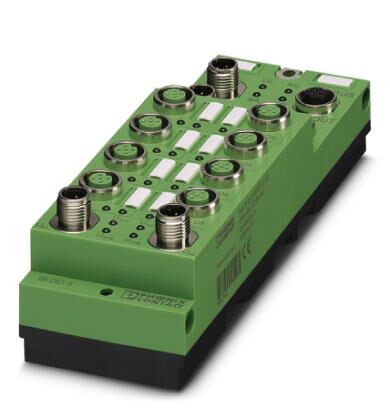

Phoenix Contact 2736039
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The stand-alone device for INTERBUS has 8 digital outputs each with a load capacity of 2 A. The M12 connection is established using fast connection technology. The 24 V DC supply is protected against short circuit and overload.Distributed I/O device - FLS IB M12 DO 8 M12-2A - 2736039
Phoenix Contact 2736039 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 106 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP65/IP67
- Permissible humidity (storage/transport)
- 95 %
Digital outputs
- Connection method
- M12 connector
- Connection technology
- 2, 3-wire
- Maximum output current per channel
- 2 A
- Number of outputs
- 8
- Output name
- Digital outputs
- Output voltage
- 24 V DC
- Protective circuit
- Short-circuit protection
Dimensions
- Depth
- 49.3 mm
- Drill hole spacing
- 168 mm
- Height
- 178 mm
- Width
- 60 mm
Electrical isolation
- Test section
- Outgoing remote bus / 24 V supply (US) 500 V AC 50 Hz 1 s
- Digital outputs (actuator supply) / 24 V supply (US) 500 V AC 50 Hz 1 s
- 24 V supply (bus logics) / Outgoing remote bus 500 V AC 50 Hz 1 s
- 24 V supply (bus logics) / FE 500 V AC 50 Hz 1 s
- Digital outputs (actuator supply) / Incoming remote bus 500 V AC 50 Hz 1 s
- Incoming remote bus / Outgoing remote bus 500 V AC 50 Hz 1 s
- Outgoing remote bus / Digital outputs (actuator supply) 500 V AC 50 Hz 1 s
- 24 V supply (bus logics) / Incoming remote bus 500 V AC 50 Hz 1 s
- 24 V supply (US) / FE 500 V AC 50 Hz 1 s
- Incoming remote bus / FE 500 V AC 50 Hz 1 s
- 24 V supply (bus logics) / Digital outputs (actuator supply) 500 V AC 50 Hz 1 s
- Outgoing remote bus / FE 500 V AC 50 Hz 1 s
- 24 V supply (bus logics) / 24 V supply (US) 500 V AC 50 Hz 1 s
- Digital outputs (actuator supply) / FE 500 V AC 50 Hz 1 s
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldline potentials
- Current consumption at UA11
- typ. 12 mA (plus actuator current)
- max. 4 A
- Current consumption at UA12
- typ. 12 mA (plus actuator current)
- max. 4 A
- Current consumption at UA21
- max. 4 A
- typ. 12 mA (plus actuator current)
- Current consumption at UA22
- typ. 12 mA (plus actuator current)
- max. 4 A
- Current consumption from UL
- max. 100 mA
- typ. 80 mA
- Current consumption from US
- typ. 3.5 mA
- max. 700 mA
- Power supply at UA11
- max. 4 A
- Power supply at UA12
- max. 4 A
- Power supply at UA21
- max. 4 A
- Power supply at UA22
- max. 4 A
- Power supply at UL
- 4 A
- Power supply at US
- max. 4 A
- Voltage supply UA11
- 24 V DC
- Voltage supply UA12
- 24 V DC
- Voltage supply UA21
- 24 V DC
- Voltage supply UA22
- 24 V DC
- Voltage supply UL
- 24 V DC
- Voltage supply US
- 24 V DC
Interfaces
- Connection method
- 2 M12 connectors, B-coded
- Designation
- Remote bus
- INTERBUS
- Designation connection point
- Copper cable
- Number of positions
- 5
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply for module electronics
- Connection method
- M12 connector, (A-coded)
- Designation
- UL
- Supply voltage
- 24 V DC
- Supply voltage range
- 18 V DC - 30 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Mechanical tests
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Load 30g, half sine wave, positive and negative per direction
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g in each space direction
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
