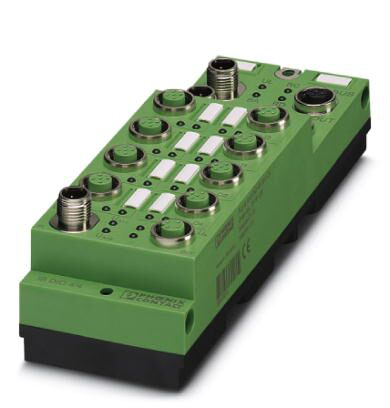

Phoenix Contact 2736026

Ambient conditions

• Air pressure (operation)
  • 80 kPa - 106 kPa (up to 2000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP65/IP67
• Permissible humidity (storage/transport)
  • 95 %

Digital inputs

• Connection method
  • M12 connector
• Connection technology
  • 2, 3, 4-wire
• Description of the input
  • IEC 61131-2 type 1
• Filter time
  • 3 ms
• Input name
  • Digital inputs
• Input voltage
  • 24 V DC
• Input voltage range "0" signal
  • -30 V DC - 5 V DC
• Input voltage range "1" signal
  • 13 V DC - 30 V DC
• Nominal input current at UIN
  • 5 mA
• Nominal input voltage UIN
  • 24 V DC
• Number of inputs
  • 4
• Protective circuit
  • Reverse polarity protection

Digital outputs

• Behavior with inductive overload
  • Output can be destroyed
• Behavior with overload
  • Auto restart
• Connection method
  • M12 connector
• Connection technology
  • 2, 3-wire
• Maximum output current per channel
  • 2 A
• Nominal load, inductive
  • 48 VA (1,2 H, 12 Ω)
• Nominal load, lamp
  • 48 W
• Nominal load, ohmic
  • 48 W
• Number of outputs
  • 4
• Output current when switched off
  • max. 20 µA
• Output name
  • Digital outputs
• Output voltage
  • 24 V DC
• Protective circuit
  • Short-circuit protection

Dimensions

• Caption
  • Dimensions of the module
• Depth
  • 49.3 mm
• Drill hole spacing
  • 168 mm
• Height
  • 178 mm
• Width
  • 60 mm

Electrical isolation

• Test section
  • Digital outputs (actuator supply) / FE 500 V AC 50 Hz 1 s
  • Digital outputs (actuator supply) / Incoming remote bus 500 V AC 50 Hz 1 s
  • 24 V supply (bus logics) / FE 500 V AC 50 Hz 1 s
  • Outgoing remote bus / FE 500 V AC 50 Hz 1 s
  • Digital inputs (sensor supply) / Digital outputs (actuator supply) 500 V AC 50 Hz 1 s
  • Digital inputs (sensor supply / I/O) / Incoming remote bus 500 V AC 50 Hz 1 s
  • Digital inputs (sensor supply / I/O) / Outgoing remote bus 500 V AC 50 Hz 1 s
  • Incoming remote bus / FE 500 V AC 50 Hz 1 s
  • 24 V supply (bus logics) / Digital outputs (actuator supply) 500 V AC 50 Hz 1 s
  • 24 V supply (bus logics) / Incoming remote bus 500 V AC 50 Hz 1 s
  • 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) 500 V AC 50 Hz 1 s
  • Incoming remote bus / Outgoing remote bus 500 V AC 50 Hz 1 s
  • 24 V supply (bus logics) / Outgoing remote bus 500 V AC 50 Hz 1 s
  • Digital inputs (sensor supply / I/O) / FE 500 V AC 50 Hz 1 s

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Fieldline potentials

• Current consumption at UA11
  • typ. 6 mA (plus actuator current)
  • max. 4 A
• Current consumption at UA12
  • typ. 6 mA (plus actuator current)
  • max. 4 A
• Current consumption from UL
  • typ. 60 mA
  • max. 100 mA
• Current consumption from US
  • typ. 10 mA (plus sensor current)
  • max. 500 mA
• Power supply at UA11
  • max. 4 A
• Power supply at UA12
  • max. 4 A
• Power supply at UL
  • max. 4 A
• Power supply at US
  • max. 4 A
• Voltage supply UA11
  • 24 V DC
• Voltage supply UA12
  • 24 V DC
• Voltage supply UL
  • 24 V DC
• Voltage supply US
  • 24 V DC

Interfaces

• Connection method
  • 2x M12 connectors, B-coded
• Designation
  • INTERBUS
• Designation connection point
  • Copper cable
• Number of positions
  • 5
• Transmission speed
  • 500 kbps

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply for module electronics

• Connection method
  • M12 connector, (A-coded)
• Designation
  • UL
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 18 V DC - 30 V DC (including ripple)

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Protection class
  • III (IEC 61140, EN 61140, VDE 0140-1)
